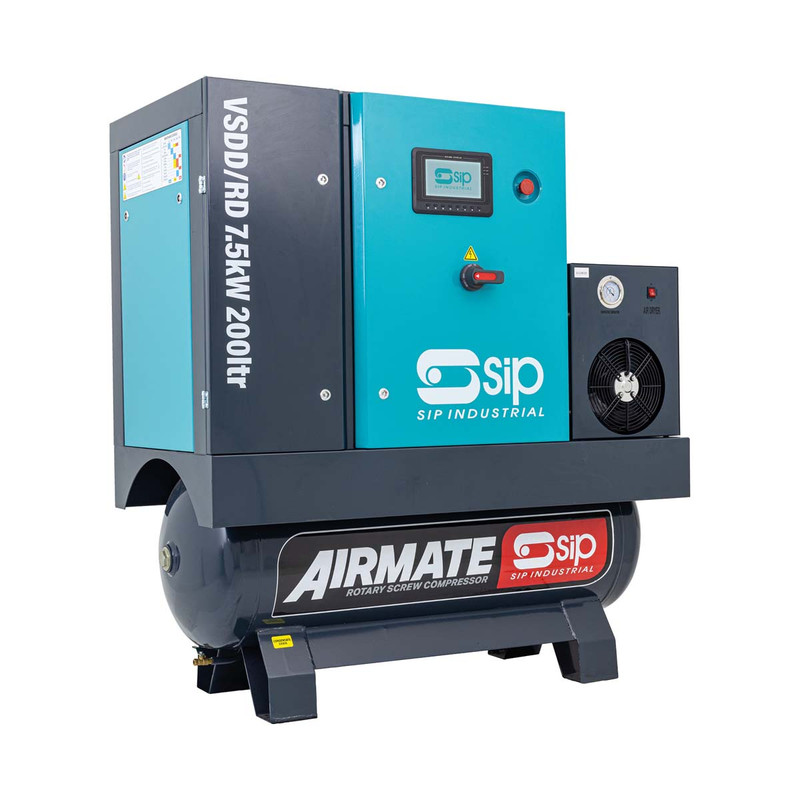

SIP 08271 VSDD/RD 7.5kW 10bar 200ltr 400v Rotary Screw Compressor with Dryer

SIP 08271 VSDD/RD 7.5kW 10bar 200ltr 400v Rotary Screw Compressor with Dryer

The SIP VSDD/RD 7.5kW 10bar 200ltr 400v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor with integrated refrigerated dryer. This 4th generation compressor is designed for continuous use applications or where multiple operators require compressed air at one time. With a motor output of 7.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 200ltr receiver tank.

08271 Features:

• Direct drive transmission for improved power transfer
• Variable speed 7.5kW motor delivers even power distribution
• Integrated refrigerated dryer reduces moisture from the air
• Heavy-duty silenced cabinet ensures reduced noise operation
• Colour touchscreen for real-time diagnostic information
• All-in-one design minimises lost work area space

08271 Specifications:

• ITEM NO. 08271
• Input Supply 400v (32A)
• Rated Input: 9.5kW
• Motor Power: 7.5kW (10hp)
• IE4 Motor: Yes
• Max. Pressure: 145psi (10bar)
• Free Air Delivery (FAD): 32CFM (920ltr/min)
• Receiver Size: 200ltr
• Cooling Type: Fan Cooled
• Transmission Type: Direct Drive
• Start-Up Mode: Inverter Soft Start
• Refrigerated Dryer: Yes
• Outlet Connector: 3/4" BSPP
• Noise Level: 62dB(A)

What is Included:

• 1x SIP 08271 VSDD/RD 7.5kW 10bar 200ltr 400v Rotary Screw Compressor with Dryer
