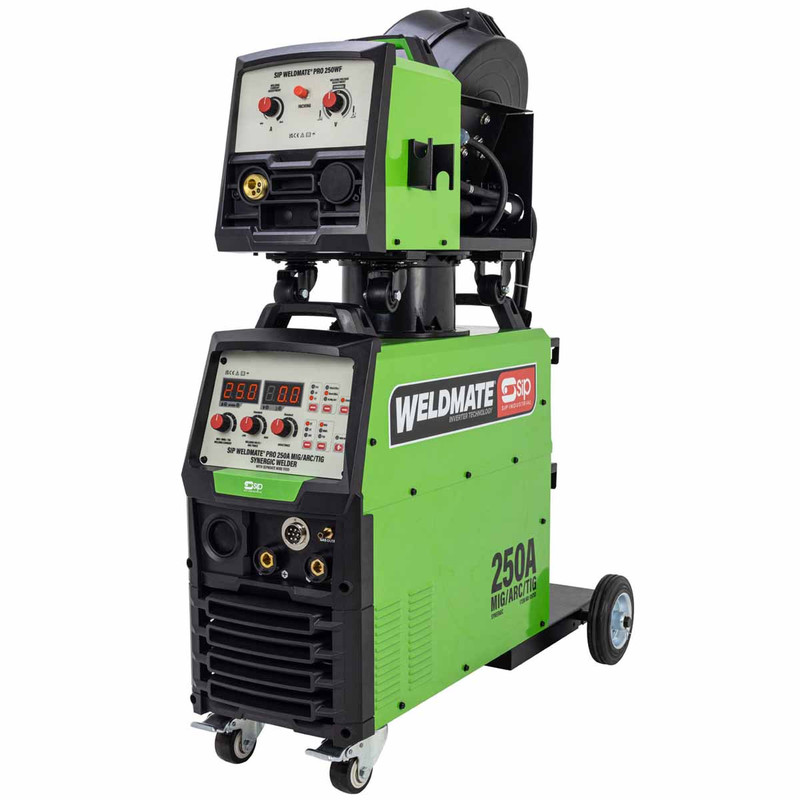

SIP 05753 WELDMATE PRO 250A MIG/ARC/TIG Synergic Welder 230V with Separate Wire Feed

Description

SIP 05753 WELDMATE PRO 250A MIG/ARC/TIG Synergic Welder 230V with Separate Wire Feed

The SIP 05753 WELDMATE PRO 250A MIG/ARC/TIG Synergic Welder is a multi-process welder designed for MIG, ARC, and TIG welding with high flexibility and duty cycles. It features Pure Synergic Control for enhanced welding precision and quality, while being fully compliant with EU Eco Design regulations.

A standout feature is the separate wire feeder, which allows for extended work area coverage and improved versatility. The welder is wheel-mounted for mobility, equipped with a heavy-duty 4-roll wire feed drive to handle high-speed wire feeding. It operates at 230V with up to 250A output and an 80% duty cycle at 250A.

05753 Features:

• Multi-process MIG/ARC/TIG welder for greater welding flexibility at high duty cycles
• Features Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Separate wire feeder allows for greater work area coverage and versatility
• Heavy-duty 4-roll cast aluminium wire feed drive handles higher feed speeds
• Wheel-mounted design with lockable front castors for mobility around work area

05753 Specification:

• Input Supply: 230v (32A)
• Welding Process: MIG

Output Voltage: 15.5v - 26.5v
Output Current: 30A - 250A
Duty Cycle @ 20°C: 250A @ 80%

• Welding Process: ARC

Output Voltage: 21.2v - 30v
Output Current: 30A - 250A
Duty Cycle @ 20°C: 250A @ 80%

• Welding Process: TIG

Output Voltage: 10.4v - 20v
Output Current: 10A - 250A
Duty Cycle @ 20°C: 250A @ 80%

• Wire Diameter: ⌀ 0.8mm - 1.2mm
• Wire Spool Size: 5kg, 15kg
• Welding Material Thickness: 0.8mm - 6.4mm (mild steel) / 3.2mm - 7.9mm (aluminium)
• Protection / Insulation 21S / H
• Net Weight: 32kg (P1); 15kg (P2)
• Gross Weight: 35kg (P1); 26.5kg (P2)
• Product Dimensions: 650(H) x 450(W) x 880mm(D) (P1); 445(H) x 310(W) x 640mm(D) (P2)
• Packaged Dimensions: 620(H) x 400(W) x 670mm(D) (P1); 565(H) x 470(W) x 745mm(D) (P2)

What is included:

• 1x SIP 05753 WELDMATE PRO 250A MIG/ARC/TIG Synergic Welder 230V
• 1x Separate Wire Feed
