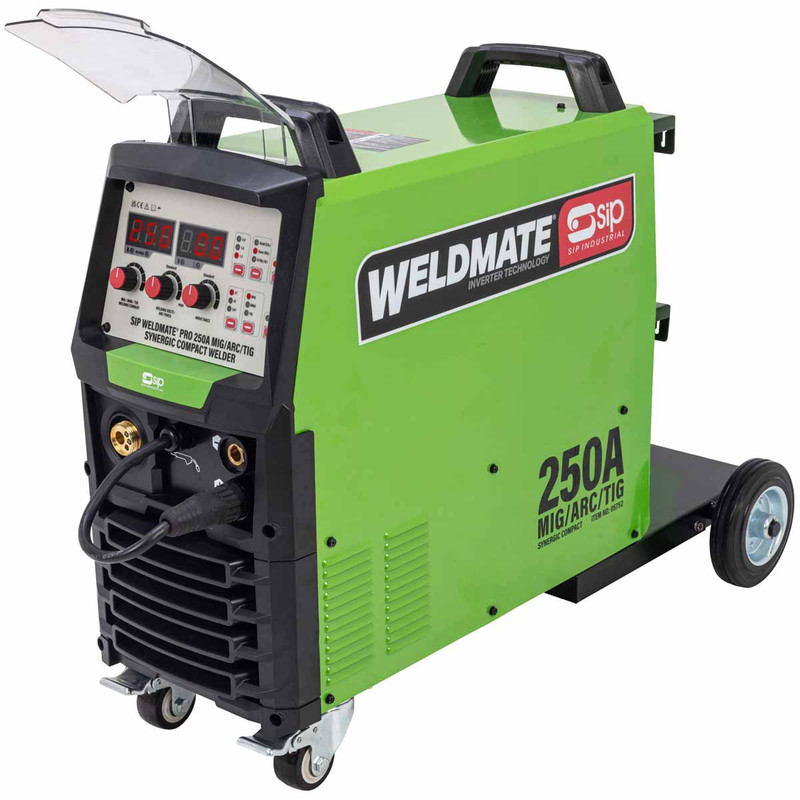

SIP 05752 WELDMATE PRO 250A MIG/ARC/TIG Synergic Compact Welder 230V

Description

SIP 05752 WELDMATE PRO 250A MIG/ARC/TIG Synergic Compact Welder 230V

The SIP 05752 WELDMATE PRO 250A MIG/ARC/TIG Synergic Compact Welder is a versatile, multi-process welder designed for MIG, ARC, and TIG welding with high duty cycles. It offers Pure Synergic Control for precise and consistent welding, making it ideal for both steel and aluminum work. This machine is compliant with EU Eco Design regulations and includes a durable 4-roll wire feed drive, ensuring smooth wire delivery at high speeds.

It features a wheel-mounted design for mobility and a control panel for easy process and setting adjustments. The welder operates at 230V and delivers up to 250A of output, with a duty cycle of 80% at 250A. It supports wire diameters between 0.8mm and 1.2mm and accommodates 5kg and 15kg wire spools.

05752 Features:

• Multi-process MIG/ARC/TIG welder for greater welding flexibility at high duty cycles
• Features Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty cast aluminium 4-roll wire feed drive handles higher feed speeds
• Intuitive control panel to select between welding processes and function settings
• Wheel-mounted design with lockable front castors for mobility around work area

05752 Specification:

• Input Supply: 230v (32A)
• Welding Process: MIG

Output Voltage: 15.5v - 26.5v
Output Current: 30A - 250A
Duty Cycle @ 20°C: 250A @ 80%

• Welding Process: ARC

Output Voltage: 21.2v - 30v
Output Current: 30A - 250A
Duty Cycle @ 20°C: 250A @ 80%

• Welding Process: TIG

Output Voltage: 10.4v - 20v
Output Current: 10A - 250A
Duty Cycle @ 20°C: 250A @ 80%

• Wire Diameter: ⌀ 0.8mm - 1.2mm
• Wire Spool Size: 5kg, 15kg
• Welding Material Thickness: 0.8mm - 6.4mm (mild steel) / 3.2mm - 7.9mm (aluminium)
• Protection / Insulation 21S / H
• Net Weight: 40kg
• Gross Weight: 43kg
• Product Dimensions: 650(H) x 450(W) x 880mm(D)
• Packaged Dimensions: 620(H) x 400(W) x 670mm(D)

What is included:

• 1x SIP 05752 WELDMATE PRO 250A MIG/ARC/TIG Synergic Compact Welder 230V
