SIP 05740TROLLEY WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder with Trolley 230V

Description

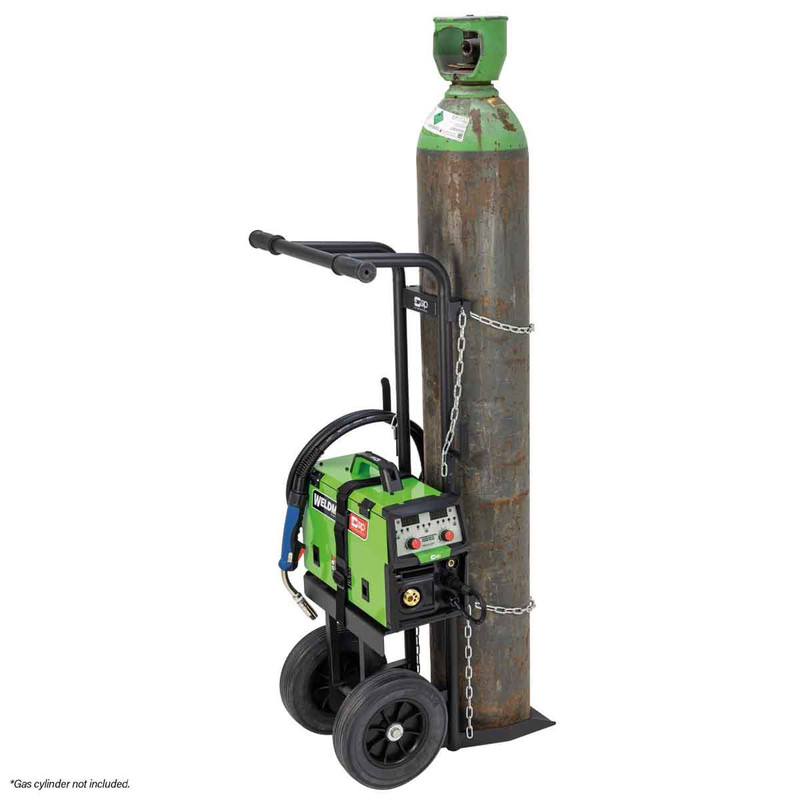

SIP 05740TROLLEY WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder with Trolley

The SIP 05740TROLLEY WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder with Trolley is a versatile welding solution suitable for MIG, ARC, and TIG processes, offering greater flexibility for various welding tasks. It features Pure Synergic Control for consistent and high-quality welds, meeting EU 2019/1784 Eco Design standards. With a heavy-duty aluminium wire feeder and an intuitive control panel, it ensures smooth wire flow and easy operation. Its robust metal casing with a strong-grip carry handle ensures durability and portability for long-term use.

05740TROLLEY Features:

• Multi-process MIG/ARC/TIG welder for greater flexibility
• Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty aluminium wire feeder for smooth consistent flow of wire
• Intuitive control panel to select between process, gas and wire size
• Metal casing with strong-grip carry handle for long life use

05740TROLLEY Specification:

• Input Supply: 230v (16A)
• Welding Process: MIG

Output Voltage: 16.5v - 24v
Output Current: 50A - 200A
Duty Cycle @ 40°C: 200A @ 15%

• Welding Process: ARC

Output Voltage: 20.8v - 28v
Output Current: 20A - 200A
Duty Cycle @ 40°C:  200A @ 15%

• Welding Process: TIG

Output Voltage: 10.8v - 18v
Output Current: 20A - 200A
Duty Cycle @ 40°C: 200A @ 15%

• Wire Diameter: ⌀ 0.8mm - 0.9mm
• Wire Spool Size: 0.7kg, 5kg
• Welding Material Thickness: 0.8mm - 6.4mm (mild steel)
• Protection / Insulation 21S / H
• Net Weight: 27.50kg
• Gross Weight: 31.00kg
• Product Dimensions: 1440(H) x 670(W) x 970mm(D)
• Packaged Dimensions: 1540(H) x 865(W) x 1075mm(D)

What is Included:

• 1 x 05740TROLLEY WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder
• 1x Trolley
