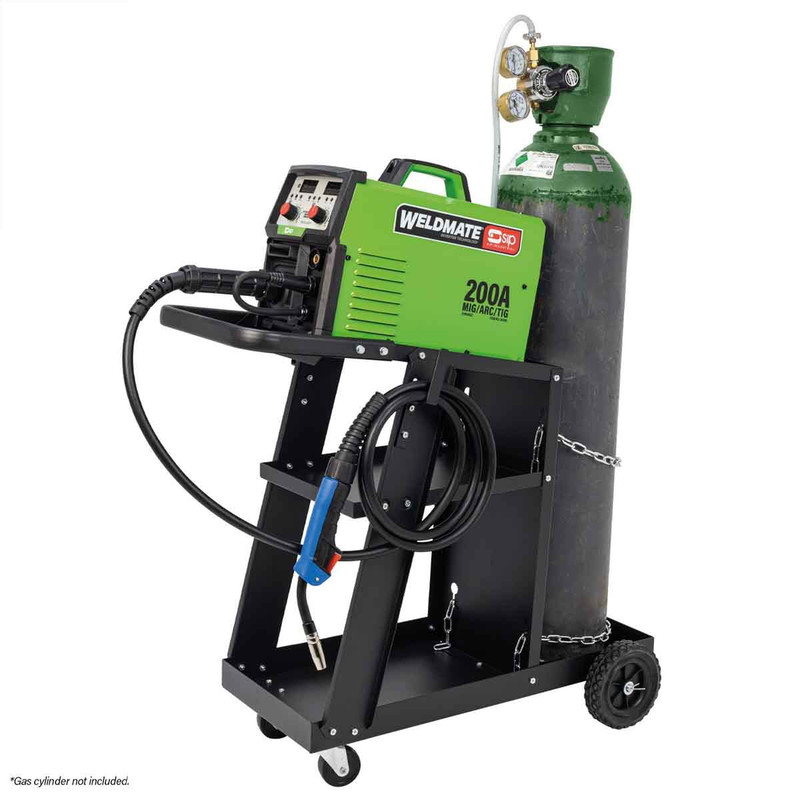

SIP 05740CART WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder with Cart
The SIP 05740CART WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder with Cart offers multi-process capability for MIG, ARC, and TIG welding tasks, providing versatility in welding applications. It features Pure Synergic Control for consistent and high-quality welds, meeting EU 2019/1784 Eco Design standards. With a heavy-duty aluminium wire feeder and an intuitive control panel, it ensures smooth wire flow and easy operation. The robust metal casing with a strong-grip carry handle ensures durability and portability for long-term use, while the included cart adds convenience for transportation and maneuverability.
05740CART Features:
- Multi-process MIG/ARC/TIG welder for greater flexibility
- Pure Synergic Control for more consistent and higher quality welds
- Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
- Heavy-duty aluminium wire feeder for smooth consistent flow of wire
- Intuitive control panel to select between process, gas and wire size
- Metal casing with strong-grip carry handle for long life use
05740CART Specification:
- Input Supply: 230v (16A)
- Welding Process: MIG
Output Voltage: 16.5v - 24v
Output Current: 50A - 200A
Duty Cycle @ 40°C: 200A @ 15%
- Welding Process: ARC
Output Voltage: 20.8v - 28v
Output Current: 20A - 200A
Duty Cycle @ 40°C: 200A @ 15%
- Welding Process: TIG
Output Voltage: 10.8v - 18v
Output Current: 20A - 200A
Duty Cycle @ 40°C: 200A @ 15%
- Wire Diameter: ⌀ 0.8mm - 0.9mm
- Wire Spool Size: 0.7kg, 5kg
- Welding Material Thickness: 0.8mm - 6.4mm (mild steel)
- Protection / Insulation 21S / H
- Net Weight: 25.20kg
- Gross Weight: 28.50kg
- Product Dimensions: 1058(H) x 570(W) x 1248mm(D)
- Packaged Dimensions: 470(H) x 650(W) x 1195mm(D)
What is Included:
- 1x 05740CART WELDMATE AUTOPLUS 200A MIG/ARC/TIG Welder
- 1x Cart
