Parweld XTM505i Liquid Cooled Mig Inverter Machine

Description

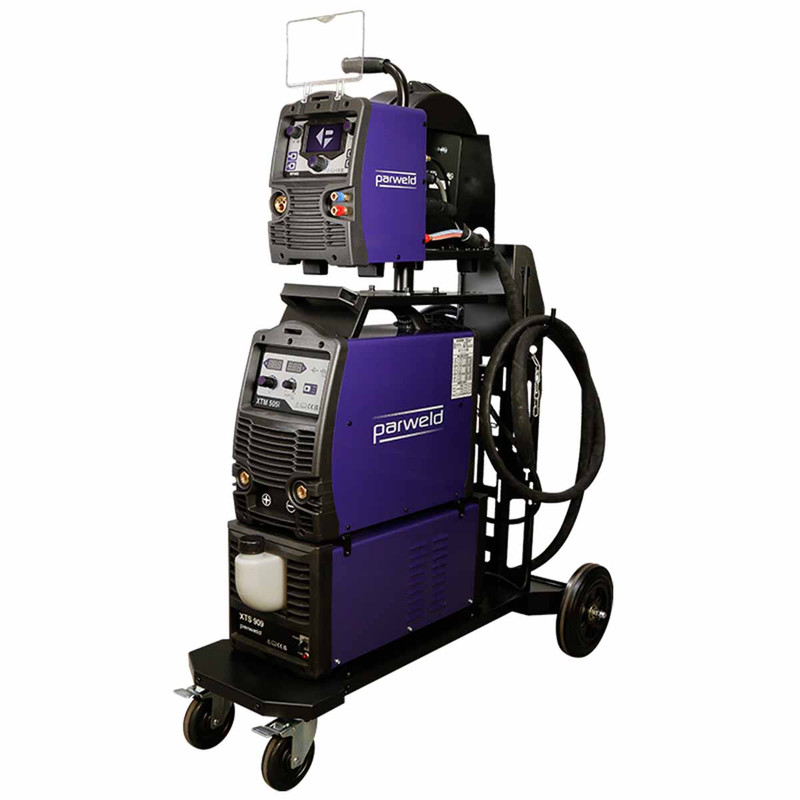

Parweld XTM505i Liquid Cooled Mig Inverter Machine

The XTM 505i is an advanced, multi-process welding machine with exceptional performance and versatility. Mounted on a trolley with a storage drawer, this three-phase MIG inverter offers MIG, Lift TIG, and MMA welding capabilities. The separate wire feeder and large interactive colour screen provide a user-friendly experience. At the same time, the synergic control in MIG mode automatically adjusts welding parameters based on material thickness, ensuring easy and efficient operation. The inverter technology also contributes to significant power savings compared to conventional step MIG machines. Additionally, the XTM 505i offers the flexibility to upgrade to a water-cooled setup by simply swapping the drawer for a water cooler, making it a versatile and adaptable welding solution for professionals and enthusiasts alike. The torch and the regulator are not included.

XTM505i Features:

• Multi-process MIG/LIFT TIG/MMA
• 400V Three Phase Machine
• Separate wire feeder comes with graphical user interface allowing easy setting of the MIG parameters
• Memory function on wire feeder allows MIG welding programs to be saved and recalled
• Wire feed inching button and gas purge button
• 2T/4T Trigger Latching for MIG welding
• Synergic control for MIG welding
• Fan on demand
• Clear visor on wire feeder to protect front panel
• Ready Assembled to Trolley, complete with Storage Drawer
• Optional Water Cooler Unit Available, in replace of Storage Drawer
• Supplied with gas hose and 3m earth lead
• Special Features: 2T/4T Trigger Latching, Bottle Stand, Built-in Water Cooler Unit, Digital Display, Digital User Interface, Lift TIG and MMA, Lift TIG Mode, Synergic Control, Synergic MIG, TIG Mode

XTM505i Specification:

• Weight: 90 kg
• Dimensions: 1100 × 600 × 1400 mm
• Phase:Three Phase
• Machine Style: Separate
• Machine Type: Inverter
• Maximum Current: 500A DC
• Duty Cycle: 500A @ 60% Duty Cycle
• Input Voltage: 400V 3P
• Voltage: 15.0-39.0V (MIG)
• Feed Box: 4 Roll Drive
• Input Current (Eff): 26.4A (MIG)
• Output: DC
• Wire Size: 1.0-1.6mm
• Spool Size: 200mm (5kg), 300mm (15kg)
• Minimum Fuse Rating: 32A
• KVA: 26
• Generator Size (Requires AVC): 30 KVA
• Cooling: Fan, On Demand, Water
• Enclosure Protection: IP23S

What is included:

• 1x Parweld XTM505i Mig Inverter Machine
• 1x TR008 Trolly
• 1x 3m Earth Lead
• 1x Gas Hose
