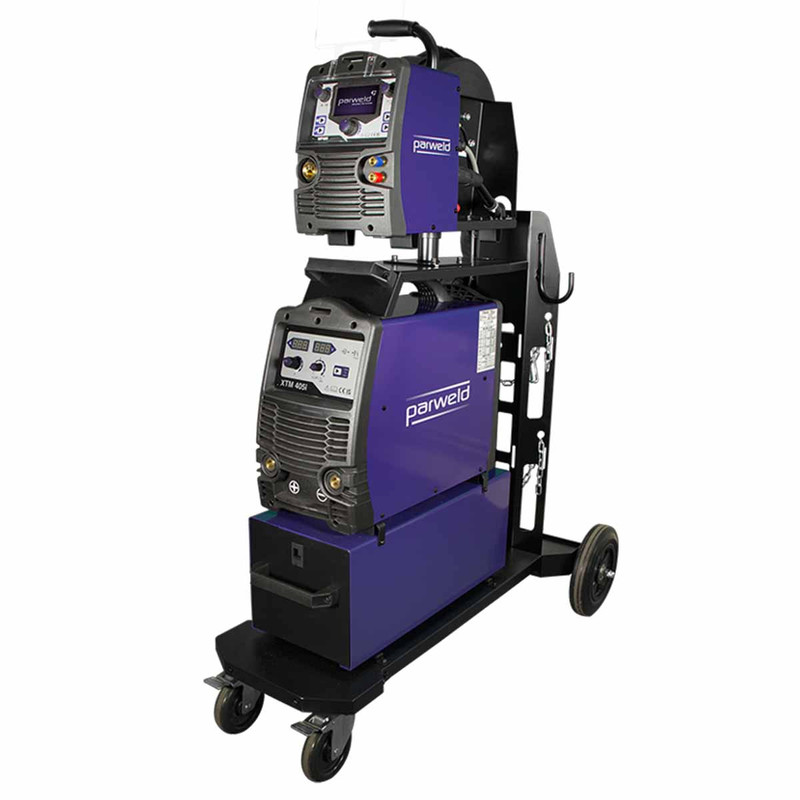

Parweld XTM405i Air Cooled 400A Mig Inverter

Description

Parweld XTM405i Air Cooled 400A Mig Inverter

The XTM 405i three-phase MIG Inverter is a high-performance, multi-process power supply suitable for MIG, Lift TIG, and MMA welding. It is mounted on a trolley and features a large interactive colour screen, a separate wire feeder, and a storage drawer. The machine's synergistic control in MIG mode ensures easy operation by automatically adjusting all welding parameters based on material thickness. Inverter technology offers significant power savings compared to traditional step MIG machines. The XTM 405i can also be upgraded to a water-cooled setup by replacing the drawer with a water cooler. Please note that this product does not come with a torch or regulator.

XTM405i Features:

• Multi-process MIG/LIFT TIG/MMA
• 400V Three Phase Machine
• Separate wire feeder comes with graphical user interface allowing easy setting of the MIG parameters
• Memory function on wire feeder allows MIG welding programs to be saved and recalled
• Wire feed inching button and gas purge button
• 2T/4T Trigger Latching for MIG welding
• Synergic control for MIG welding
• Fan on demand
• Clear visor on wire feeder to protect front panel
• Ready Assembled to Trolley, complete with Storage Drawer
• Optional Water Cooler Unit Available, in replace of Storage Drawer
• Supplied with gas hose and 3m earth lead

XTM405i Specification:

• Weight: 90 kg
• Dimensions: 1100 × 600 × 1400 mm
• Phase: Three Phase
• Machine Style: Separate
• Machine Type: Inverter
• Maximum Current: 400A DC
• Duty Cycle: 400A @ 60% Duty Cycle
• Input Voltage: 400V 3P
• Voltage: 15.0-34.0V (MIG)
• Feed Box: 4 Roll Drive
• Input Current (Eff): 21.2A (MIG)
• Output: DC
• Wire Size: 1.0-1.6mm
• Spool Size: 200mm (5kg), 300mm (15kg)
• Minimum Fuse Rating: 32A
• KVA: 22
• Generator Size (Requires AVC): 25 KVA
• Cooling: Air, Fan, On Demand
• Enclosure Protection: IP23S

What is included:

• 1x Parweld XTM405i Air Cooled 400A Mig Inverter
• 1x 3m Earth Lead
• 1x Built-In Drawer
• 1x Gas Hose
• 1x TR008 Trolley
