SIP 05734TROLLEY WELDMATE PRO 200A MIG/ARC/TIG with Trolley 230V

Description

SIP 05734TROLLEY WELDMATE PRO 200A MIG/ARC/TIG with Trolley 230V

The SIP WELDMATE® PRO 200A MIG/ARC/TIG Synergic Welder with Trolley is a multi-process inverter welder specifically designed for use in professional fabrication workshops.

Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.

It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.

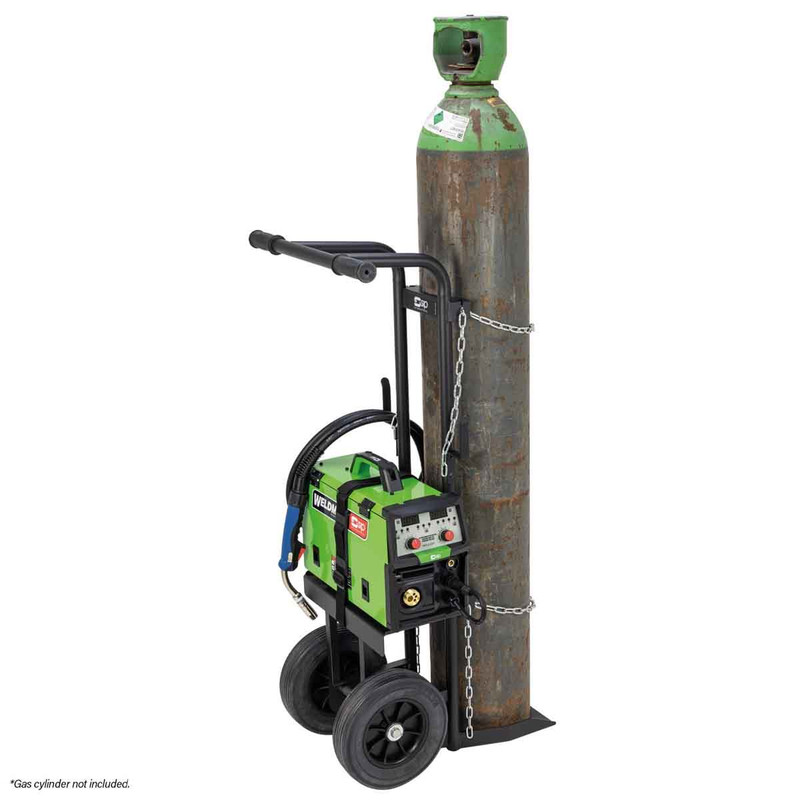

This package is complete with the 05719 SIP Large Cylinder Welding Trolley, which is suitable for gas cylinders up to 99kg.

05734TROLLEY Features:

• Multi-process MIG/ARC/TIG welder for greater flexibility
• Pure Synergic Control for more consistent and higher quality welds
• Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)
• Heavy-duty aluminium wire feeder for smooth consistent flow of wire
• Intuitive control panel to select between process, gas and wire size
• Metal casing with strong-grip carry handle for long life use

05734TROLLEY Specifications:

• Input Supply: 230V (16A)
• Welding Process:
• MIG (Metal Inert Gas)
• ARC (Manual Metal Arc)
• TIG (Tungsten Inert Gas)
• Output Voltage:
• MIG: 16.5V - 24V
• ARC: 20.8V - 28V
• TIG: 10.8V - 18V
• Output Current:
• MIG: 50A - 200A
• ARC: 20A - 200A
• TIG: 20A - 200A
• Duty Cycle @ 20°C:
• 200A @ 30% (MIG/ARC/TIG)
• Wire Diameter: ⌀ 0.8mm - 1mm
• Wire Spool Size: 0.7kg, 5kg
• Welding Material Thickness:
• Mild Steel: 0.8mm - 6.4mm
• Stainless Steel (using stainless steel welding wire)
• Aluminium (using aluminium welding wire and pure Argon gas)

What is Included:

• 1 x SIP WELDMATE PRO 200A MIG/ARC/TIG with Trolley 230V
