Description

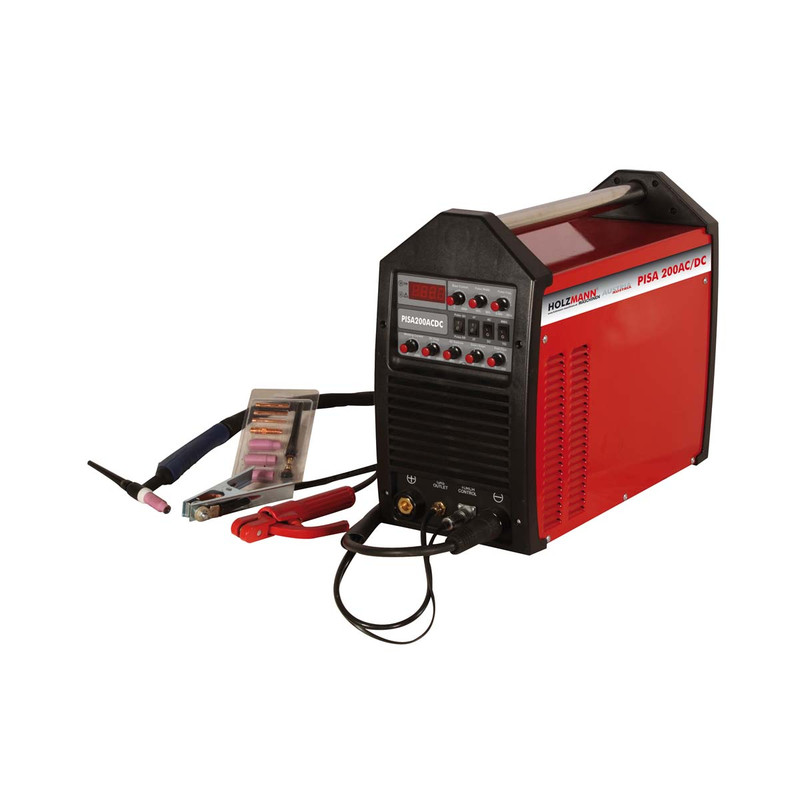

Holzmann PISA200ACDC 200A ACDC Pulse TIG Welder 230V
Holzmann PISA200ACDC portable pulse TIG welder used to weld thin sections of stainless steel, non-ferrous metals such as aluminum, magnesium and copper alloys. Features include 5-200 A welding current range, low start up current, and high quality torch. The Pulse feature enables improved control and setting up the pulse will moderate the heat as you weld, and ensure you have enough heat present at the joint without over layering the weld with filler metal or burning through the metal. Includes pressure relief, welding place equipment, WIG-welding place equipment.
PISA200ACDC Features:
- Compact, lightweight, and highly portable
- With foot pedal (optional FT-1)
- AC/DC TIG/WIG suitable for mild steel, stainless steel, and aluminium
- Easy operation and versatile to use
- 2T/4T control function
- 60% duty cycle - Overload protection
- Used to weld thin sections of stainless steel, non-ferrous metals such as aluminum, magnesium and copper alloys.
- Includes pressure relief, welding place equipment, WIG-welding place equipment
PISA200ACDC Specifications:
- Total dimensions in mm: 430x200x290
- Down slope in s: 0-10
- Input voltage: 1x230V 50Hz
- Input power capacity in KVA: 6
- Welding current range in A: 5-200
- Gas pre flow time in s: 0-10
- Electrode holder in A: 300
- Gas hose length in m: 2
- Welding cable length in m: 3
- Earth clamp in A: 300
- Duty cycle in %: 60
- No load voltage in V: 60-80
- Gas post flow time in s: 1.25
- Net weight in kg: 27
- Gross weight in kg: 32.80
- Packaging height in mm: 530
- Packaging width in mm: 390
- Packaging length in mm: 640
What is Included:
- 1x Holzmann PISA200ACDC 200A ACDC Pulse TIG Welder 230V
- 1x Pressure relief
- 1x Welding place equipment
- 1x WIG-welding place equipment
