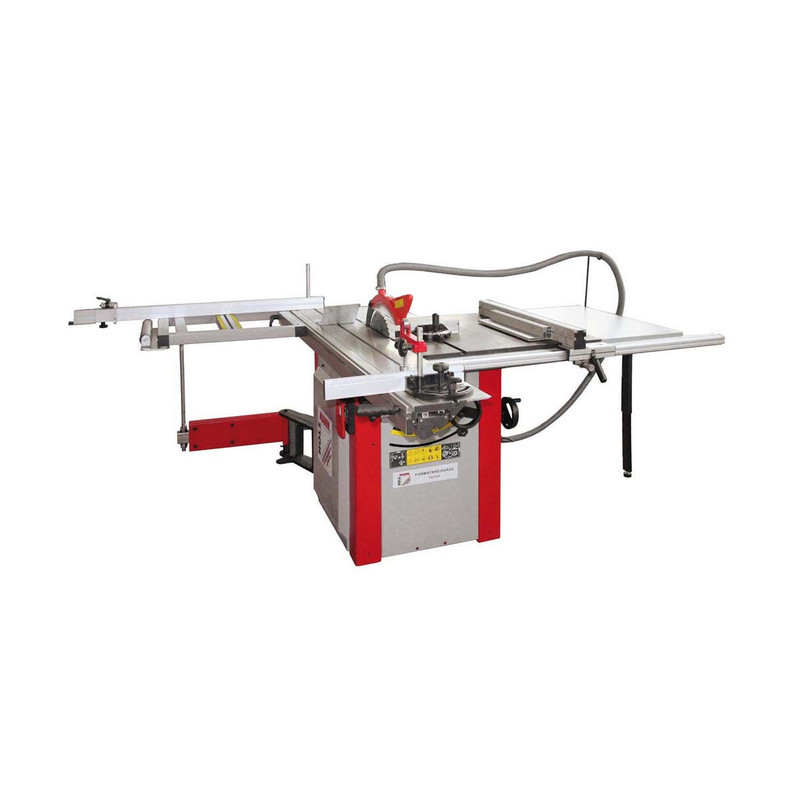

Holzmann TS315VF2000 4000W Panel Sizing Saw with Scoring Blade 230V

Description

Holzmann TS315VF2000 4000W Panel Sizing Saw with Scoring Blade 230V

The Holzmann TS315VF2000 is a precision panel sizing saw with combining power, accuracy, and versatility all in the one package. It features heavy steel and cast iron construction, powerful 4000 W induction motor, max. 100 mm cutting height at 90°, integrated beam with sliding outrigger support table, 1900 mm cutting stroke in front of the blade, and separate scoring blade function for underscoring sheet material. The precision rip fence and side extension table also gives an extra wide 1250 mm cutting width to the right of the blade. So whether you are the seasoned joiner or professional cabinet maker, the Holzmann TS315VF2000 is the ideal saw for accurately ripping down timber, as well as precise trimming of oversized panels - the perfect precision workshop saw offering all round cutting performance.

TS315VF-2000 Features:

• Powerful 4000 W induction motor
• height- and angle adjustable saw blade with scoring unit
• grey cast iron table with extension on the right hand side and at the back of the table
• smoothly running 2000mm aluminium sliding table with rugged outrigger table incl. support roller
• extractable mitre at rip fence with work piece end stop
• XL cutting width at rip fence with max. 1250mm
• max. cutting height 90° in mm: 99

TS315VF-2000 Specifications:

• Motor power in W: 4000
• Tension: 230V
• Outrigger Table in mm: 540×760
• Format sliding Table in mm: 2000×270
• Extraction connection in mm: 100
• Table height in mm: 870
• Table extension in mm: 500×310 / 800×440
• Table size in mm: 800×820
• Cutting width at the rip fence in mm: 1220
• Max. Cutting height 45 ° in mm: 80
• Max. Trimming length in mm: 1900
• Max. Cutting height 90 ° in mm: 100
• Scoring saw blade in mm: 90
• Saw blade (/ hole) in mm: 315
• Saw blade Speed in rpm: 4000
• Scoring saw blade Speed in rpm: 5800
• Saw blade Swivel range: 0 ° -45 °
• Gross weight in kg: 284
• Net weight in kg: 263
• Packaging length in mm: 910
• Packaging width in mm: 741
• Packaging height in mm: 1,047

What is Included:

• 1 x Holzmann TS315VF2000 4000W Panel Sizing Saw with Scoring Blade
• 1 x T.C.T. circular saw blade Ø315mm
• 1 x scoring unit
• 1 x T.C.T. scoring unit saw blade
• 1 x extensions
• 1 x table extensions
• 1 x rip fence
• 1 x mitre fence
• 1 x telescopic fence
