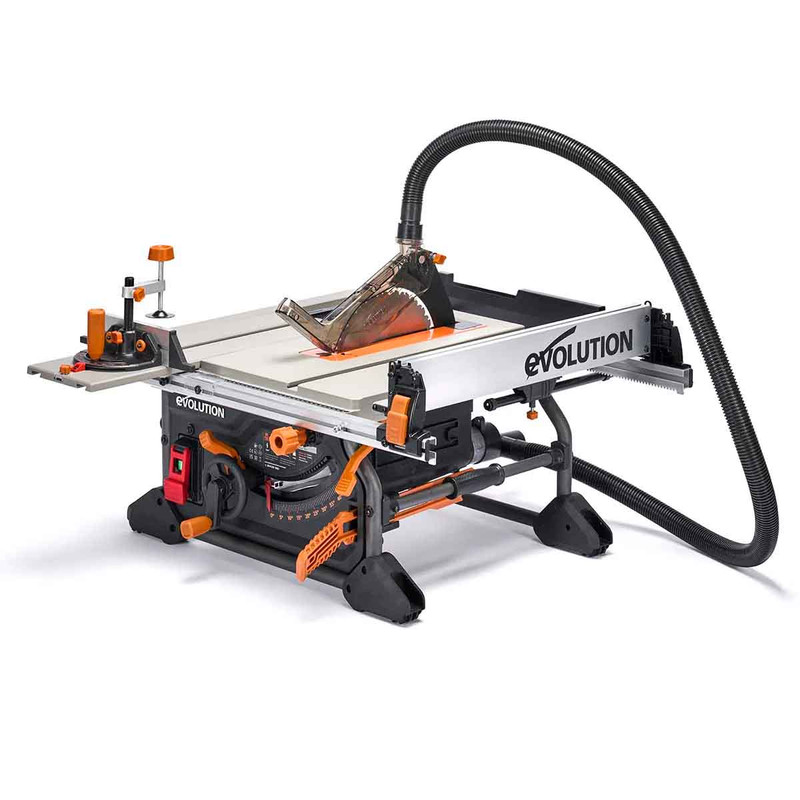

Evolution R255TBL+ Next Generation 255mm Jobsite Table Saw 1800W 230V

Description

Evolution R255TBL+ Next Generation 255mm Jobsite Table Saw 1800W 230V

The Evolution R255TBL+ Next Generation 255mm Jobsite Table Saw is a powerhouse of versatility and precision. With its 1,800W hi-torque motor and 255mm Japanese Tungsten-Carbide-Tipped blade, it effortlessly cuts through various materials. Its improved accuracy, dual rack & pinion parallel fence, and geared micro-adjustable bevel angle selector ensure precise cuts every time. Featuring enhanced safety features like the paddle-style emergency stop switch and Active Overload System, it prioritizes user safety. Additionally, its portability is unmatched with integrated carry handles and a more compact wheeled support system, making it ideal for jobsites.

119-0011 Features:

• More portable, powerful, accurate and easier to adjust and calibrate.
• Improved accuracy for every cut type and ease of set-up
• Dual Rack & pinion parallel fence for precision rip cuts
• Crosscut Sled Insert – industry standard accessory channel profile for Mitre Guide
• Geared micro-adjustable bevel angle selector 45° Range (+&- 2°)
• Quick Release Riving Knife with offset angle and lateral adjustment.
• Metal roll cage chassis with integrated carry handles
• Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees
• New blade guard. easier adjustment and enhanced cut visibility & dust extraction
• More compact and portable wheeled support – rolls through standard width door
• ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
• AOS Active Overload System enhanced reliability Soft Start, E-Brake, Intelligent Motor Overload Protection
• Paddle Style Emergency Stop Switch provides increased user safety
• Reduced pack and storage size
• Multi-Material cutting technology. One saw, one blade, cuts all.*
• More powerful, 1,800W hi-torque motor
• 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles
• Increased table-top size - includes table extenders and outfeed supports
• 4m durable cable with the built-in storage cable holder
• Includes Outfeed Support
• Includes Dual Inlet Vacuum Hose Kit
• All tools and accessories stored on tool frame
• 3 Year limited warranty
• Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 28T blade included
• Available with or without folding, wheeled accessory stand
• UK Customer support & servicing

119-0011 Specification:

• Motor (240V 50Hz): 1,800W
• Speed No Load: 3,050rpm
• Max. Bevel (Left): 45° (-2 to 47° with stop washers removed)
• Blade Dia.: 255mm
• No. of Teeth: 24
• Bore: 25.4mm
• Kerf: 2mm
• Max. Depth of Cut (0°): 85mm
• Max. Depth of Cut (45°): 58mm
• Mild Steel Plate
• (Max. Thickness): 6mm
• Rip Capacity - Right of the blade 650mm
• Rip Capacity - Left of the blade 371mm
• Riving Knife Thickness 1.8mm
• Product Dimensions: (With Leg Assembly) 340 x 695 x 653mm
• Product Dimensions: (Without Leg Assembly) 340x 965x 653mm
• Max. Table Dimensions 1200mm x 640mm
• Min. Table Dimensions 745mm x 640mm
• Packaging Dimensions: 910mm x 370mm x 750mm
• Storage Dimensions: H 1110mm x D 660mm x W 825mm
• Product Weight: 23.33 kg
• Packaged Weight: 26.25 kg
• Sound Pressure Level LPA: 93,2dB(A); K:3dB(A)
• Sound Power Level LWA: 106,2dB(A); K=3 dB(A)

What is included:

• 1x R255TBL+ Next Generation 255mm Jobsite Table Saw 1800W 230V
• 1x 28T Multi-Material TCT Blade
• 1x Built In Crosscut Sled
• 1x Blade Guard with Dust Extraction Port
• 1x Dust Extraction Hose & fittings
• 1x Mitre Gauge & Top Clamp
• 1x Outfeed Support
• 1x Adjustable Rip Fence
• 1x Push Stick
• 1x Riving Knife
• 1x Blade Changing Spanners
• 1x Assorted fixings
