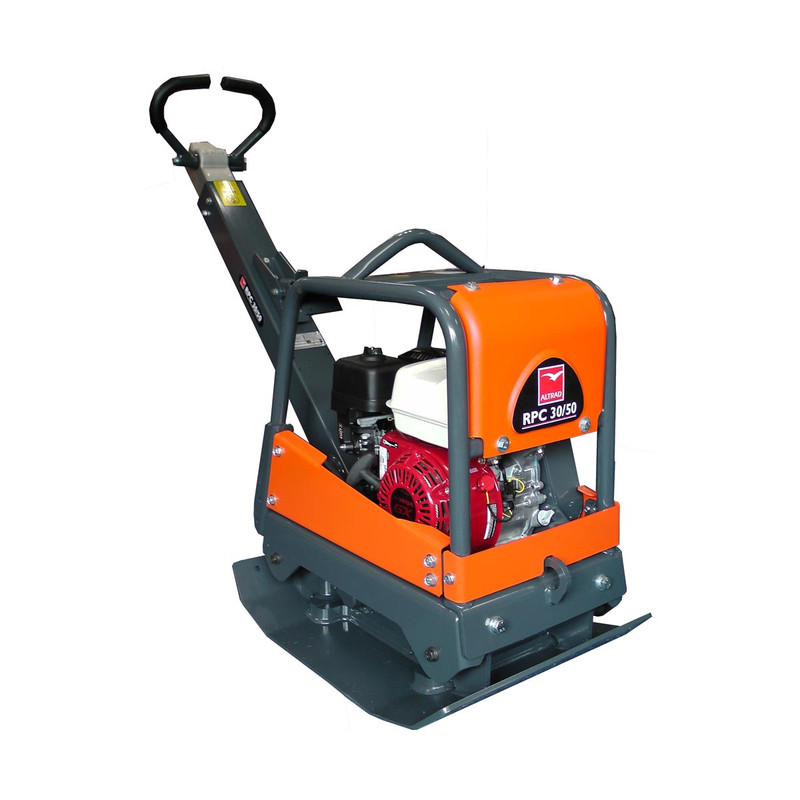

Belle RPC 30/40D Hatz Diesel Reversible Plate Compactor

Description

Belle RPC 30/40D Hatz Diesel Reversible Plate Compactor

Heavy duty range of reversible plate compactors with hydraulic shift gearboxes for changing movement direction. RPC plates are designed for high compaction, durability and ease of maintenance.

161.9.000 Features:

• Engine/Motor Power : 4.2 - 3.1 (Hp) - (kW)
• Plate Size (W x L) : 400 x 657 (mm)
• Static Pressure : 1380 (Kg/m2)
• Max Gradient : 20 (°)
• Centrifugal Force : 30 (kN)
• Frequency : 95 (Hz)
• Travel Speed : 24 - 26 (m/min)
• Vibration Level : 7.83 (m/sec2)

161.9.000 Specification:

• Engine/Motor Power : 4.2 - 3.1 (Hp) - (kW)
• Plate Size (W x L) : 400 x 657 (mm)
• Static Pressure : 1380 (Kg/m2)
• Max Gradient : 20 (°)
• Centrifugal Force : 30 (kN)
• Frequency : 95 (Hz)
• Travel Speed : 24 - 26 (m/min)
• Vibration Level : 7.83 (m/sec2)

What is Included:

• 1x Belle 161.9.000 RPC 30/40D 1B20 Hatz Diesel Reversible Plate Compactor
