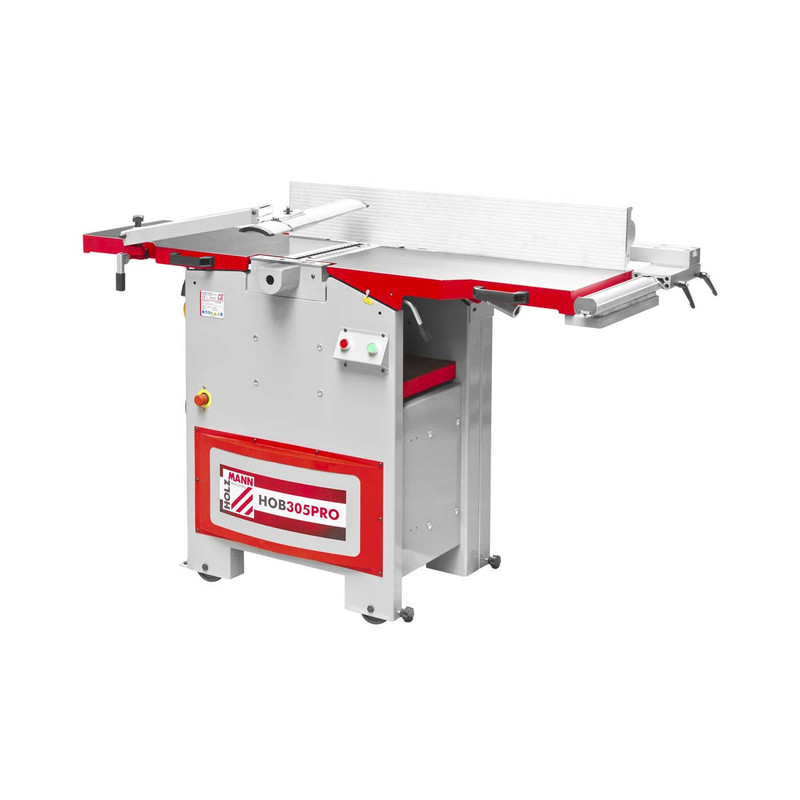

Holzmann HOB305PRO 304mm Planer and Thicknesser 230V

Description

Holzmann HOB305PRO 304mm Planer and Thicknesser 230V

The Holzmann HOB305PRO is a cast iron planer thicknesser designed for the professional craftsman needing a heavy built machine to cope with a more demanding workload. It features a powerful 2.2 kW motor, heavy all steel construction, and cast iron planing tables that give the machine a really solid feel and make it completely stable in use. Suitable for larger workshops and professional users looking for exceptional performance.

HOB305PRO Features:

• 4-knife cutter block ensures perfect results
• Smooth going centrally located thicknessing height adjustment
• Both cast iron tables can be folded away for thicknessing
• 3.0 mm Max. stock removal in single pass
• Planing fence angles 0 - 45° for bevelled edge planing
• 304 mm Max. planing width
• 300 x 225 mm max. thicknessing capacity
• Thicknessing feed Speed: 5.5 m/min
• 4000 rpm cutter block Speed for precise smooth finish
• Powerful 2.2 kW induction motor

HOB305PRO Specifications:

• Planing table size in mm: 1512×400
• Fence tilt: 90° -45°
• Planer fence in mm: 1000×160
• Max. thicknessing cutting depth in mm: 3
• Thicknesser table height in mm: 900
• Motor power s1 in W: 2200
• Feed speed: 5.5
• Voltage: 230V
• Suction port in mm: 100
• Table size in mm: 585×300
• Cutting depth in mm: 3
• Shaft diameter in mm: 74
• Shaft speed in min-1: 4000
• Cutter knives amount: 4
• Gross weight in kg: 325
• Net weight in kg: 288
• Packaging length in mm: 1.650
• Packaging width in mm: 650
• Packaging height in mm: 1.150

What is Included:

• 1 x Holzmann HOB305PRO 304mm Planer and Thicknesser 230V
• 1 x Deluxe alloy planing fence
• 4 x HSS planing knives
• 1 x Dust extraction chute
• 1 x Overhead safety bridge guard
