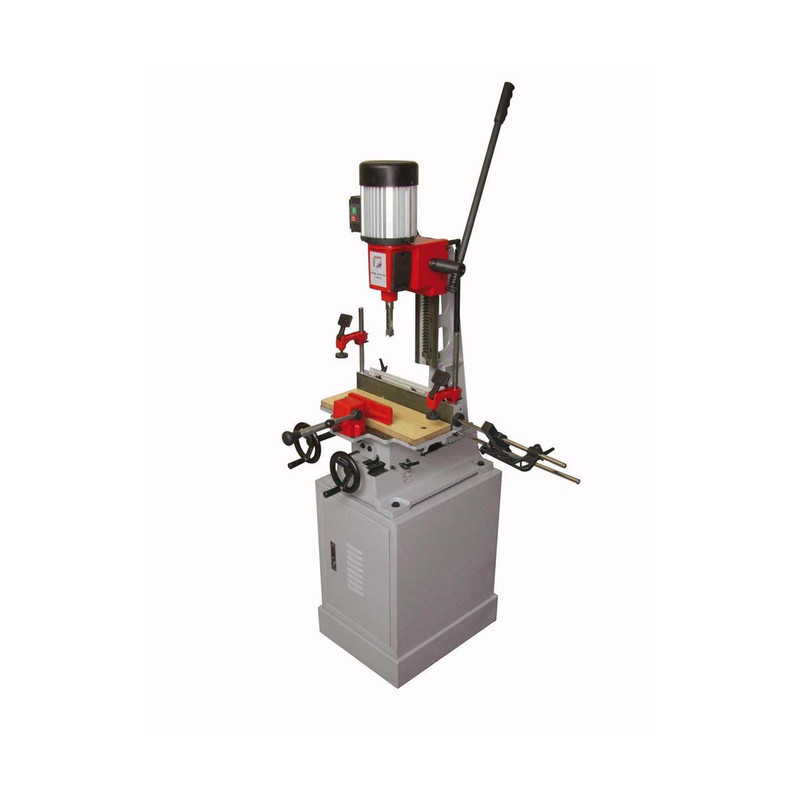

Holzmann STM26 750W Hollow Chisel Mortise Machine 230V

Description

Holzmann STM26 750W Hollow Chisel Mortise Machine 230V

The Holzmann STM26 hollow chisel floor mortiser is ideal for making square edge holes for mortise and tenon joints in wood. Features include solid steel and cast iron construction, powerful 750 W motor, max. 6 - 26 mm chisel capacity, and sturdy steel cabinet base. The machine has a max. plunge drilling depth of 76 mm, a 210 mm workpiece height under the chisel, and handwheel side to side centering. The headstock and table movements are smooth and easy to operate whilst helping to make drilling mortise holes effortless even in hard woods. The ideal machine for woodworking enthusiasts and professional users alike making doors, windows, cabinet making, and furniture.

STM26 Features:

• Dovetail guides (adjustable) ensure precise work
• Perfect machine for tenoning joints in hard- and softwood
• Adjustable depth stops allow a high repeating accuracy
• Big hand wheels allow an easy adjustment of the table
• Convenient one-hand operation with force support through gas pressure cylinder
• Bending resistant cast iron setup
• 2pcs work piece down holder with quick adjustment
• Stand with lockable tool cabinet and rubber feet

STM26 Specifications:

• Motor power S1 in W: 750
• Motor power S6 in W: 1050
• Tension: 230V
• Max. Height in mm: 1720
• Table size in mm: 400×150
• Max. Workpiece thickness in mm: 210
• Drilling spindle speed in min-1: 1400
• Max. Drilling depth in mm: 76
• Chisel size min / max in mm: 6-26
• Gross weight in kg: 110
• Net weight in kg: 90
• Packaging length in mm: 570
• Packaging width in mm: 490
• Packaging height in mm: 850
• Max. work piece height: 210mm
• Height: 1720mm

What is Included:

• 1x Holzmann STM26 750W Hollow Chisel Mortise Machine 230V
• 1x Chisel set 16mm
• 1x Base frame
