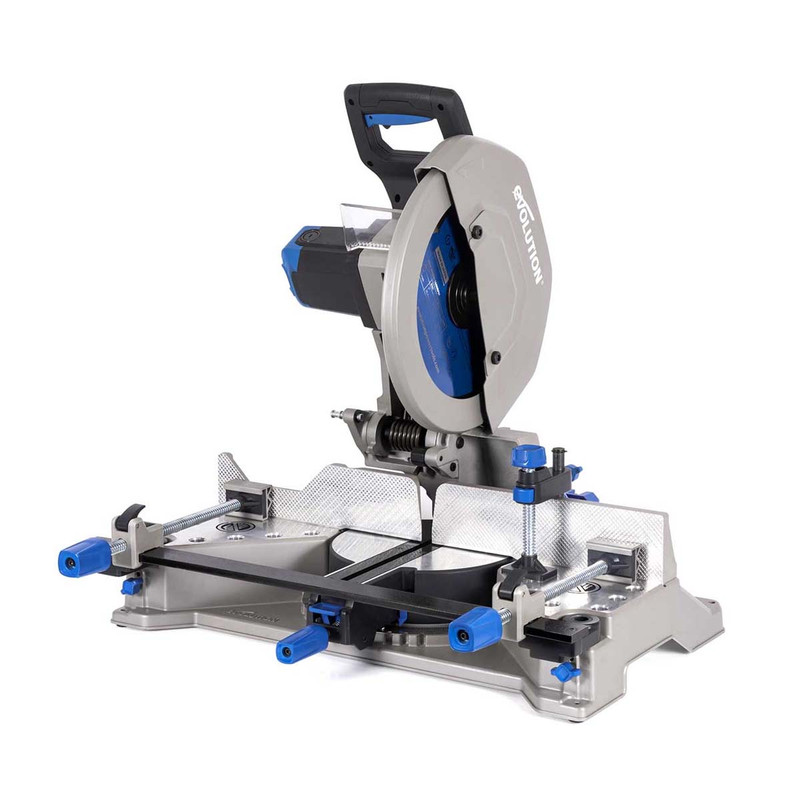

Evolution S355MCS/2 355mm Mitre Chop Saw Heavy Duty Metal Cutting 2200W 240V

Description

Evolution S355MCS/2 355mm Mitre Chop Saw Heavy Duty Metal Cutting 2200W 240V

The Evolution S355MCS Chop Mitre Saw is the first 355mm TCT industrial Chop Saw designed for professionals that allows you to produce accurate mitre cuts without repositioning the workpiece. The S355MCS Mitering Chop Saw is designed to handle heavy cuts in oversized metal pieces. It has a precision adjustable mitre table, a 3-position saw head, and our unique, height-adjustable double front clamp rail assembly. It has a powerful clamping mechanism that ensures quality, repeatable cuts every time, as well as precise and quick angle adjustment for easy set-up.

The S355MCS Mitering Chop Saw is easy to rely on for your toughest jobs, thanks to its powerful 2,200W motor, simple ambidextrous controls, and Bench Dog compatible base plate with a tough knurled back fence.

If your fabrication work requires you to make quick, repeatable, accurate, clean, and cost-effective cuts through a wide range of large diameter metal workpieces, the S355MCS Mitre Chop Saw is the obvious choice.

S355MCS Features:

• Heavy Duty Metal Cutting Mitering Chop Saw
• +/- 46˚ Mitre Range Adjustable Saw Head
• Precision Laser Etched Mitre Guide
• 1,600W Motor
• Burr Free - Ready To Weld Cuts
• Fine Adjust & Pre-set Mitre Positions
• Height Adjustable Front Clamp Rail
• Sliding QR Front Clamps x2
• 4-Position QR Top Clamp
• Workpiece Support V-Blocks
• 3-Position Cutting Head for optimum cuts
• Bench Dog Compatible Base
• Ambidextrous Trigger
• Knurled Back fence for secure clamping
• Chip Deflector
• Cast Alloy Base

S355MCS Specification:

• Motor (240V 50Hz): 2200W
• Motor (110V 50Hz): 1600W
• Speed No Load: 1550 min-1
• Max. Bevel (Left): +/- 46°
• Cable Length: 3m
• Blade Dia.: 355mm
• No. of Teeth: 66
• Bore: 25.4mm / 1 In.
• Kerf: 2.4mm
• Mild Steel Plate (Max Thickness): 12mm
• Stainless Steel Plate (Max Thickness): 5mm
• Square Tube at 90° (Mild Steel): 120 x 120mm
• Square Tube at 45° (Mild Steel): 100 x100mm
• Rectangle Tube at 90° (Mild Steel): 100x 165mm
• Rectangle Tube at 45° (Mild Steel): 100 x 110mm
• Round Tube at 90° (Mild Steel): Ø 120mm
• Round Tube at 45° (Mild Steel): Ø 110mm
• Minimum Cut Off Piece Length: 8 mm
• Packaging Dimensions: 450 x 760 x 584mm
• Product Dimensions: 410 x 530 x 310mm
• Product Weight: 35 kg
• Packaged Weight: 40 kg
• Sound Pressure Level LPA: 94.8 dB(A)
• K:3dB(A)
• Sound Power Level LWA: 107.9 dB(A)
• K=3 dB(A)

What is included:

• 1x S355MCS/2 355mm Mitre Chop Saw Heavy Duty Metal Cutting 2200W 240V
• 1x Instruction Manual
• 1x Double Ended 5mm/8mm Hex Key
• 1x Cutting Head Assembly
• 1x Base Table Assembly
• 1x Rear Stabilising Leg
• 1x QR Top Clamp
• 1x Rail Bracket & Fixings
• 1x V-Blocks x3
• 1x QR Front Clamps x 2
