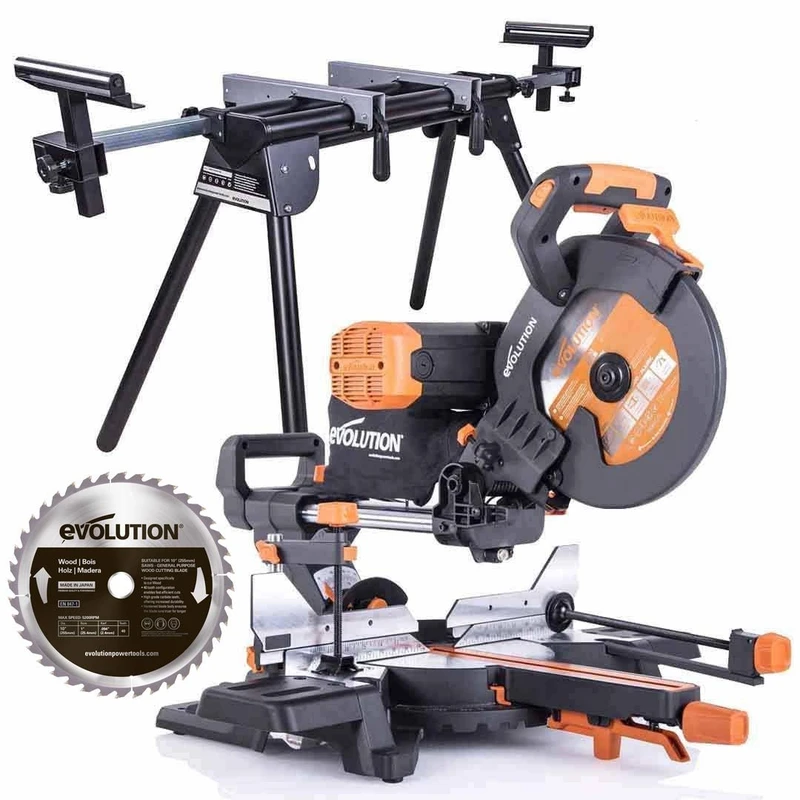

Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & Stand

Description

Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & Stand

With a 255mm blade and a huge 90mm x 300mm crosscut capability the R255SMS-DB+ is the most capable and powerful Mitre Saw in the Evolution line-up. With 2,000 watts of power and a multi-material blade that slices through wood, plastic, metal, and even reclaimed wood with embedded nails it offers best in class power and versatility. Packed with features this double bevel mitre saw cuts 45 ° bevels in both directions. An integrated laser cutting guide and positive bevel stops provide accuracy for every cut. A durable die-cast aluminium base is tough enough to handle any material. With great ergonomics, single-handed cutting action and easy access storage tools and workpiece clamps the R255SMS-DB+ is the ultimate trade and workshop mitre saw, you can pay more but you can't buy better.

R255SMS-DB+ Features:

• Multi-Material cutting technology. One saw, one blade, cuts all.*
• Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
• Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs & virtually no sparks.
• Powerful 2000W (230v option), 1600W (110v option), hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
• Perform accurate Crosscuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.
• Cut to within +/- 0.5˚ with 45° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
• An impressive 300mm x 90mm max. crosscut capacity enables you to cut through most framing beams.
• Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
• Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
• The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
• 3-year limited warranty.

R255SMS-DB+ Specifications:

• Motor (240V 50Hz): 2000W
• Speed No Load: 2600 min-1
• Max. Bevel (Left): 45° - 45°
• Max. Mitre: 50° - 50°
• Cable Length: 4m
• Blade Dia.: 255mm
• No. of Teeth: 28
• Bore: 25.4mm / 1 in.
• Kerf: 2mm
• Max. Cross Cut (0° x 0°): 300mm x 90mm
• Max. Bevel Cut Left (0° x 45°): 300mm x 52mm
• Max. Bevel Cut Right (0° x 45°): 300mm x 34mm
• Max. Mitre Cut (45° x 0°): 212mm x 90mm
• Max. Compound Cut Left (45° x 45°): 212mm x 52mm
• Max. Compound Cut Right (45° x 45°): 212mm x 34mm
• Mild Steel Plate
• (Max. Thickness): 1/4 in.
• Mild Steel Box Section
• (Max. Wall Thickness): 1/8 in.
• Product Dimensions: 570 x 545 x 385mm
• Packaging Dimensions: 575 x 545 x 385mm
• Product Weight: 18.24 kg
• Packaged Weight: 20.5 kg
• Sound Pressure Level LPA: 95,8 dB(A) K=3 dB(A)
• Sound Power Level LWA: 108,8 dB(A) K=3 dB(A)

What is Included:

• 1 x Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & Stand
• 1 x 255mm (10 In.) 28 Tooth Multi-Material Cutting Blade
• 1 x Machine Table Extensions (x2)
• 1 x 26mm & 4mm Dual-Ended Hex Key
• 1 x Rotary Table And Neck Cutting Head
• 1x Carriage Slides
• 1 x Mitre Locking Knob
• 1 x Mains Cable
• 1 x Guide/Clamp
• 1 x Self Tapping Cap Screw (x1) M6 x 16mm
• 1 x Socket Headed Screws (x4) M5 x 12mm
• 1 x Socket Headed Screws (x2) (possibly a separate point from the previous)
• 1 x Laser Lens Cap
• 1 x Cable Clip
• 1 x Slide Locking Knob
• 1 x Dust Port Adaptor
• 1 x Dust Collection Bag
• 1 x Quick Release Hold Down Clamp
• 1 x Instruction Manual
