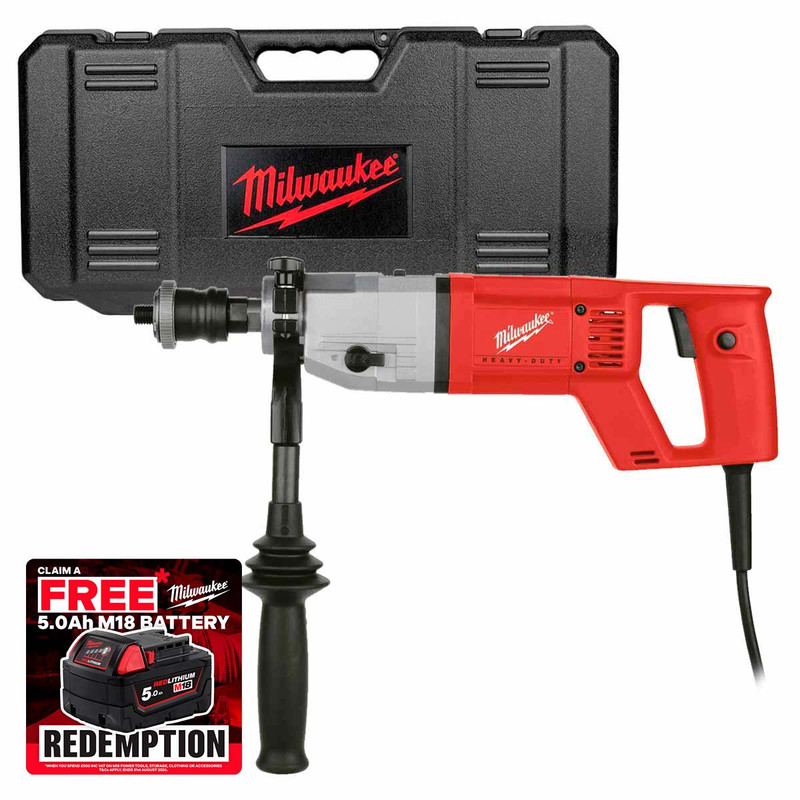

Milwaukee DD 2-160 XE 2-Speed Dry Diamond Drill 1500W 240V

Description

Milwaukee DD 2-160 XE 2-Speed Dry Diamond Drill 1500W 240V

The Milwaukee DD 2-160 XE is a high-performance drill designed for demanding tasks. It features a powerful and robust motor that ensures consistent high torque. The tool offers dual protection with interlinked mechanical and electronic clutches to safeguard both the user and the equipment. Its durable construction includes a metal gearbox for enhanced longevity.
The drill has a long AVS side handle and a "D-shaped" back handle for safe and comfortable handling. It includes a 2-speed gearbox and operates on a 240V power supply. The soft hammer action, when activated, speeds up cutting and drilling. The soft start function via the accelerator switch allows precise and controlled drilling.
Additionally, the FIXTEC™ Cleanline rotor, available as an accessory, provides efficient dust extraction. The drill comes with a 4-meter cable and, for the UK version, a keyed chuck for secure bit clamping.

DD 2-160 XE Features:

• Powerful Motor: Delivers consistent high torque for demanding applications.
• Dual Protection: Interlinked mechanical and electronic clutches enhance safety for both the user and the tool.
• Robust Construction: Metal gearbox ensures durability and longevity.
• Safe Handling: Long AVS side handle and "D-shaped" back handle for improved control and comfort.
• 2-Speed Gearbox: Provides versatility for various drilling tasks.
• 240V Operation: Suitable for standard mains power supply.
• Soft Hammer Action: Allows for faster and easier cutting with core bits.
• Soft Start: Accelerator switches for precise and controlled drilling.
• FIXTEC™ Cleanline Rotor: Optional accessory for effective dust extraction.
• 4-Meter Cable: Provides extended reach for better manoeuvrability.
• UK Version: Supplied with a keyed chuck for secure bit attachment.

DD 2-160 XE Specification:

• Chuck Capacity: 162 mm
• Full Load Speed: 0 - 890 rpm / 0 - 1770 rpm
• Max. Drilling Diameter in Masonry: 162 mm
• Max. Static Stalling Torque: 50 Nm
• No Load Hammer Stroke: 24,000 rpm / 48,000 rpm
• No Load Speed: 0 - 1500 rpm / 0 - 3000 rpm
• Power Input: 1500 W
• Tool Reception: M18 x 2.5
• Weight: 4.2 kg
• Sound Power Level (Lwa): 111 dB(A)
• Sound Power Level Uncertainty: 3 dB(A)
• Sound Pressure Level (Lpa): 100 dB(A)
• Sound Pressure Level Uncertainty: 3 dB(A)
• Vibration Level (Drilling): 13 m/s²
• Vibration Level (Drilling into Concrete): 20 m/s²
• Vibration Uncertainty (Drilling into Concrete): 1.5 m/s²
• Vibration Level (Drilling into Metal): <2.5 m/s²
• Vibration Uncertainty (Drilling into Metal): 1.5 m/s²
• Vibration Uncertainty: 3.6 m/s²
• Supplied In: Kitbox

What is included:

• 1x Milwaukee DD 2-160 XE 2 Speed Dry Diamond Drill 1500W 240V
• 1x Kitbox
