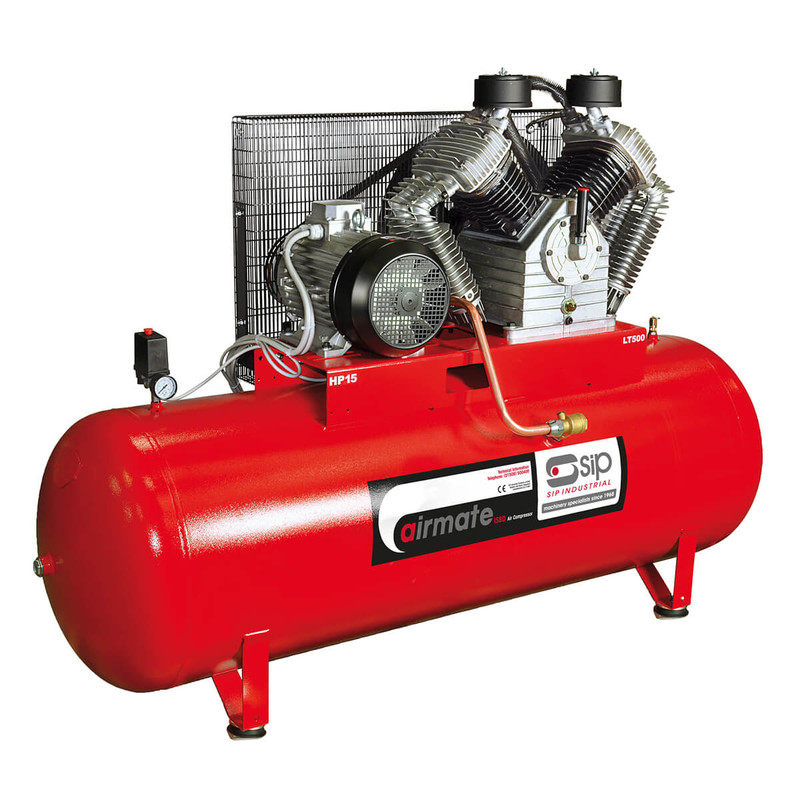

SIP 06297 ISBD15/500 Industrial Super Electric Compressor

Description

SIP 06297 ISBD15/500 Industrial Super Electric Compressor

The SIP ISBD15/500 Super is an electric compressor designed for industrial applications, with an oversized air chamber for better temperature control and an electronically-balanced crankshaft.

Features

• 400v (32amp), 3 phase input supply
• Heavy-duty 500 litre air receiver size
• Powerful, rugged 15hp (11.2kW) motor
• 160psi (11 bar) max. working pressure
• 61.5CFM maximum piston displacement
• 40.7CFM maximum free air delivery (FAD)
• Electronically-balanced crankshaft system
• Oversized chamber for better temp control
• Stainless steel elastomers for perfect seal
• Cast iron constructed, reliable valve plate
• Internal painting resin prevents oil leaks
• 10 year anti-corrosion receiver warranty
• 3 year comprehensive parts warranty*

06297 Specification

• ITEM NO. 06297
• Input Supply: 400v (32A) 3PH
• Motor Power: 15hp (11.2kW)
• Receiver Size: 500 litres
• Piston Displacement: 61.5CFM (1744 litres/min)
• Max. Free Air Delivery: 40.7CFM (1153 litres/min)
• Maximum Pressure: 160psi (11 bar)
• Working Speed: 1200rpm
• No. of Cylinders: 4 cylinders
• No. of Stages: 2 stages

What is included:

• 1 x SIP 06297 ISBD15/500 Industrial Super Electric Compressor
