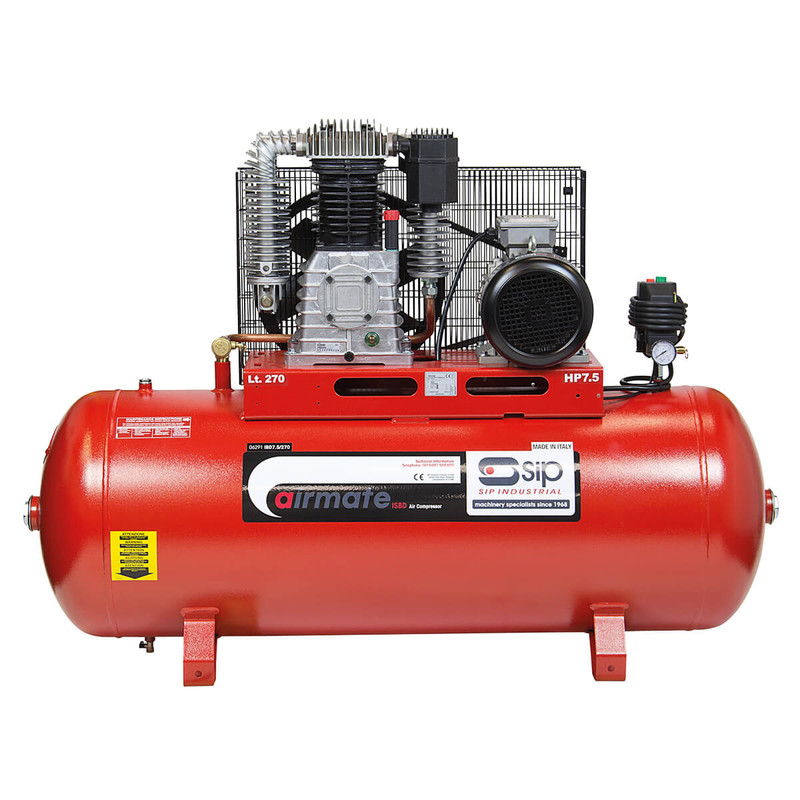

SIP 06291 ISBD7.5/270 Industrial Super Electric Compressor

Description

SIP 06291 ISBD7.5/270 Industrial Super Electric Compressor

The SIP ISBD7.5/270 Super is an electric compressor designed for industrial applications, with an oversized air chamber for better temperature control and an electronically-balanced crankshaft.

Features

• 400v (20amp), 3 phase input supply
• Heavy-duty 270 litre air receiver size
• Powerful, rugged 7.5hp (5.6kW) motor
• 160psi (11 bar) max. working pressure
• 31CFM maximum piston displacement
• 20.5CFM maximum free air delivery (FAD)
• Electronically-balanced crankshaft system
• Oversized chamber for better temp control
• Stainless steel elastomers for perfect seal
• Cast iron constructed, reliable valve plate
• Internal painting resin prevents oil leaks
• 10 year anti-corrosion receiver warranty
• 3 year comprehensive parts warranty*

06291 Specification

• ITEM NO. 06291
• Input Supply: 400v (20A) 3PH
• Motor Power: 7.5hp (5.6kW)
• Receiver Size: 270 litres
• Piston Displacement: 31CFM (878 litres/min)
• Max. Free Air Delivery: 20.5CFM (580 litres/min)
• Maximum Pressure: 160psi (11 bar)
• Working Speed: 1200rpm
• No. of Cylinders: 2 cylinders
• No. of Stages: 2 stages

What is included:

• 1 x SIP 06291 ISBD7.5/270 Industrial Super Electric Compressor
