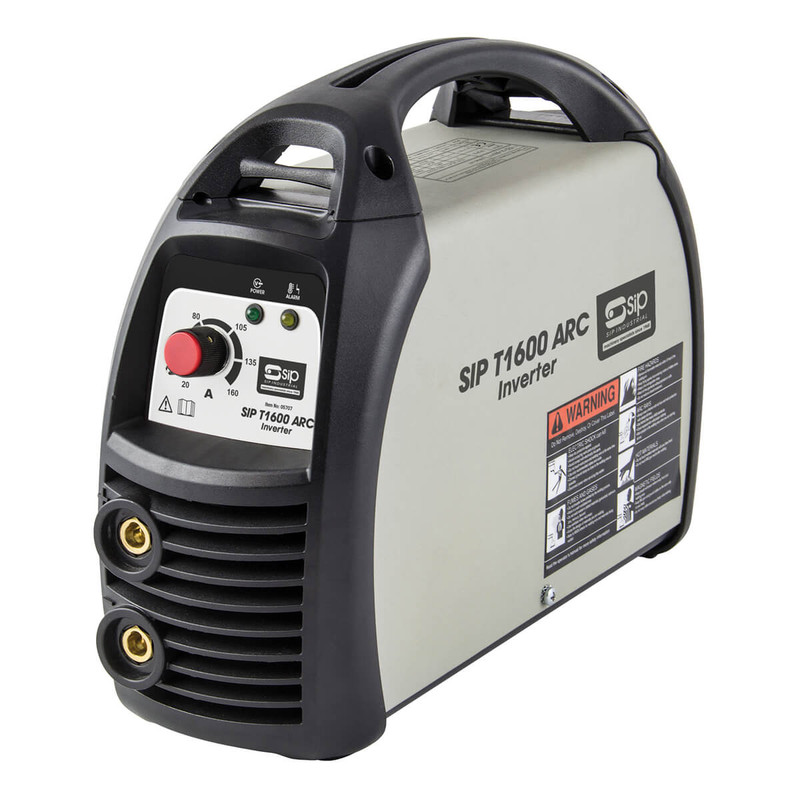

SIP 05707 T1600 ARC/TIG Inverter Welder

Description

SIP 05707 T1600 ARC/TIG Inverter Welder

The SIP T1600 ARC Inverter is a multi-functional inverter welder equipped with on-demand fan cooling, scratch-TIG start function, anti-stick circuitry, and dinse sockets. Accessories supplied.

Features

• 230v (16A) input supply
• 20A - 160A peak output current range
• 1.6mm - 4mm maximum electrode size
• 1.5mm - 8mm weld thickness (mild steel)
• Generator friendly and super lightweight
• On-demand fan cooling for performance
• Reliable scratch-TIG torch start function
• Anti-stick circuitry and easy controls
• Added thermal overload protection
• Electrode holder and Earth cable
• EMC filter included as standard

05707 Specification

• ITEM NO. 05707
• Input Supply: 230v (16A)
• Output Current: 20A - 160A
• Peak Current: 160A
• Duty Cycle: 160A @ 20%
• Electrode: ? 1.6mm - 4mm
• Weld Thickness: 1.5mm - 8mm
• Open Voltage: 68v
• Power Factor: 0.65
• Efficiency: 85%
• Insulation: Class H
• Protection: IP21S

What is included:

• 1 x SIP 05707 T1600 ARC/TIG Inverter Welder
