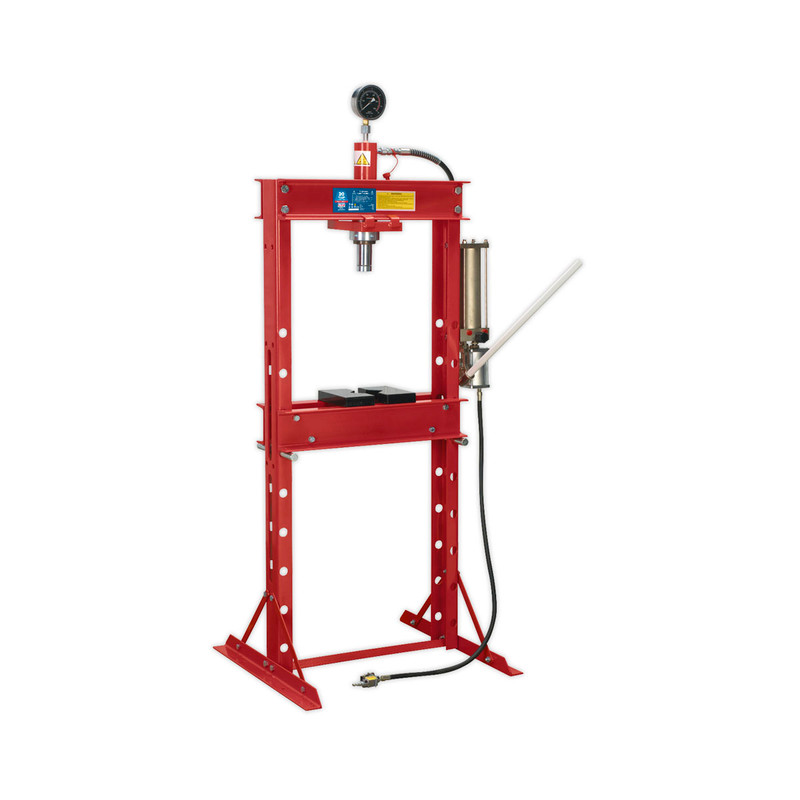

Sealey YK20FAH Air/Hydraulic Press 20tonne Floor Type

Description

Sealey YK20FAH Air/Hydraulic Press 20tonne Floor Type

Steel frame construction with side mounted, air motor powering hydraulic pump unit. Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.

YK20FAH Features

• Steel frame construction with side mounted air motor powering hydraulic pump unit
• Sliding hydraulic ram assembly giving 403mm of lateral travel for off-centre pressing applications
• Fitted with ram pressure gauge
• Supplied with flat pressing plate/V-blocks

YK20FAH Specification

• Model No YK20FAH
• Air Consumption: 4cfm
• Bench or Floor Mounting: Floor
• Brand: Sealey
• Capacity: 20tonne
• Gauge Included: Yes
• Lateral Ram Travel: 403mm
• Maximum Height - Ram to Table: 1018mm
• Minimum Height - Ram to Table: 58mm
• Nett Weight: 93kg
• Optional Accessories: YKPP8 - Press Pin Set
• Overall Height: 1796mm
• Ram Diameter: 48mm
• Ram Stroke: 185mm
• Table Aperture: 100mm
• Type: Air/Hydraulic
• Working Pressure: 108-120psi
• Working Table Depth: 206mm
• Working Table Width: 630mm

What is included:

• 1 x Sealey YK20FAH Air/Hydraulic Press 20tonne Floor Type
