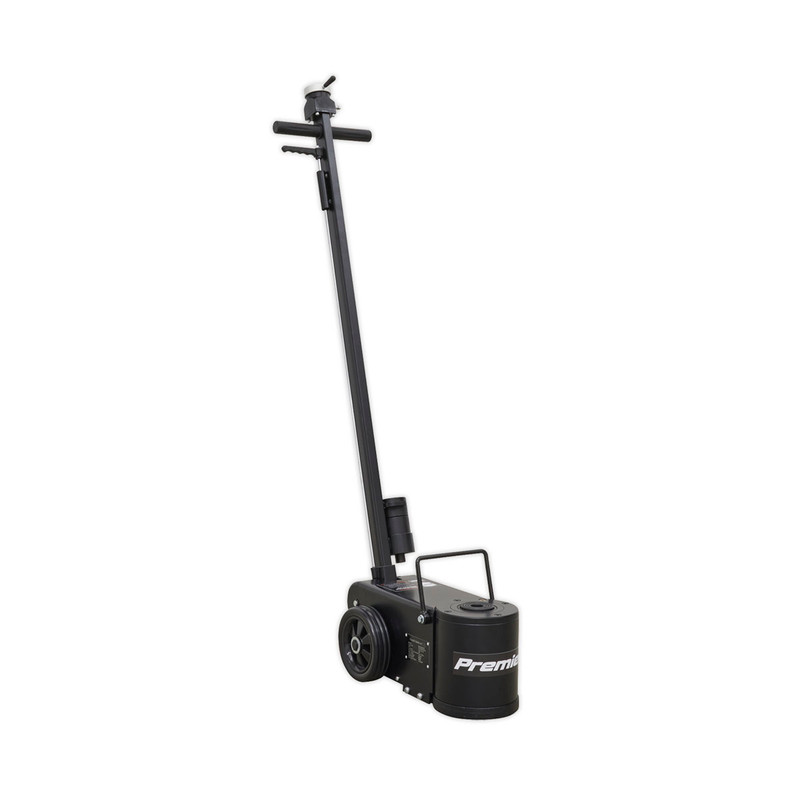

Sealey YAJ301 Air Operated Jack 30tonne - Single Stage

Description

Sealey YAJ301 Air Operated Jack 30tonne - Single Stage

Ideal for workshop or roadside use, these jacks take the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. A comprehensive range of nine models, see logo beside each jack for main features and the table beside for detailed specification.

YAJ301 Features

• Spring loaded dead man's control enables safe, controlled lifting/lowering of vehicle
• Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle
• Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles
• Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point

YAJ301 Specification

• Model No YAJ301
• Air Consumption: 10.5cfm
• Brand: Sealey
• Capacity: 30tonne
• Chassis Length: 490mm
• Extensions: 45/75mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 463/30
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 1700mm
• Minimum Saddle Height: 210mm
• Nett Weight: 47kg
• Overall Width: 290mm
• Piston Stroke: 133mm
• Screw Extension: n/a
• Width without Wheels: 176mm
• Working Pressure: 116-174psi

What is included:

• 1 x Sealey YAJ301 Air Operated Jack 30tonne - Single Stage
