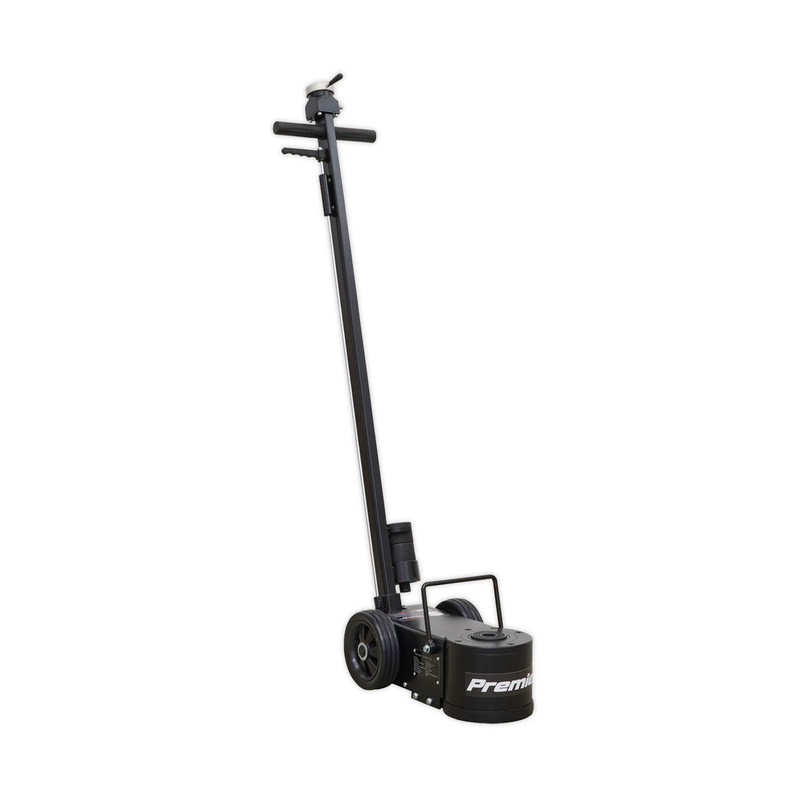

Sealey YAJ15-30 Air Operated Jack 15-30tonne Telescopic

Description

Sealey YAJ15-30 Air Operated Jack 15-30tonne Telescopic

Ideal for workshop or roadside use, this jack takes the effort out of lifting heavy plant, tractors and commercial vehicles. For extra safety, features dead man’s handle which also aids controlled lowering speed. Supplied with extensions that close the gap between the saddle of the jack and the jacking point. See table for detailed specification.

YAJ15-30 Features

• Spring loaded dead man's control enables safe, controlled lifting/lowering of vehicle
• Handle locks in position and can be used at three different angles to allow improved manoeuvrability and access around the vehicle
• Ideal for workshop or roadside use, takes the effort out of lifting heavy plant, tractors and commercial vehicles
• Supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point

YAJ15-30 Specification

• Model No YAJ15-30
• Air Consumption: 10.5cfm
• Brand: Sealey
• Capacity: 30tonne
• Chassis Length: 480mm
• Extensions: 45/75mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 393/30
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 472/15
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 1700mm
• Minimum Saddle Height: 175mm
• Nett Weight: 42.5kg
• Overall Width: 290mm
• Piston Stroke: 177mm
• Screw Extension: n/a
• Width without Wheels: 176mm
• Working Pressure: 116-145psi

What is included:

• 1 x Sealey YAJ15-30 Air Operated Jack 15-30tonne Telescopic
