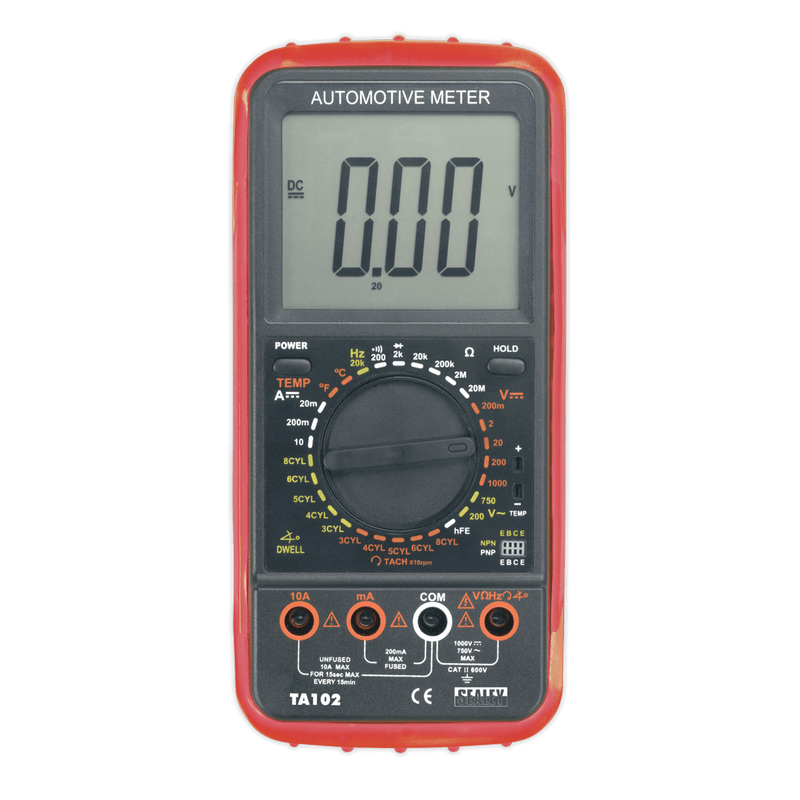

Sealey TA102 Digital Automotive Analyser 11 Function

Description

Sealey TA102 Digital Automotive Analyser 11 Function

Durable case and integral stand suitable for the toughest workshop conditions. Large, hi-contrast LCD display with 34mm high digital read-out. Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto power off and low battery display functions. Supplied with capped test probes and K-type thermocouple.

TA102 Features

• Durable case and integral stand suitable for the toughest workshop conditions
• Large, hi-contrast LCD display with 34mm high digital read-out
• Includes over-range indication, auto-zeroing, data-hold, auto-polarity, auto power off and low battery display functions
• Supplied with capped test probes and K-type thermocouple

TA102 Specification

• Model No TA102
• Brand: Sealey
• Nett Weight: 495g
• Tach (rpm): 3/4/5/6/8Cyl 180-10000 (x10)rpm
• Dwell: 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°
• AC Voltage: 200-750V
• DC Voltage: 200mV, 2V, 20V, 200V, 1000V
• AC Current: No
• DC Current: 20mA, 200mA, 10A
• Capacitance: No
• Frequency: 20kHz
• Duty Cycle: No
• Pulse Width: No
• Resistance: 200?, 2k?, 20k?, 200k?, 2M?, 20M?
• Continuity: <30?
• Temperature: -20 to +750°C/-4 to +1382°F
• IR Temperature: No
• Diode Check: Yes (Typical Test Current 1mA)
• Transistor Test (hFE): Vce=3V, Ib=10µA
• Back Light: No
• Bar Graph Display: No
• Display Hold: Yes
• Auto-Ranging: No
• Inductive Coupler: No
• PC Interface: No
• Digits Height: 34mm
• Auto Power Off: Yes
• Low Battery Indicator: Yes
• Batteries (supplied): 9V (PP3)
• Hi-Impact Case: Yes
• Size (L x W x D): 200 x 97 x 48mm
• Weight: 495g

What is included:

• 1 x Sealey TA102 Digital Automotive Analyser 11 Function
