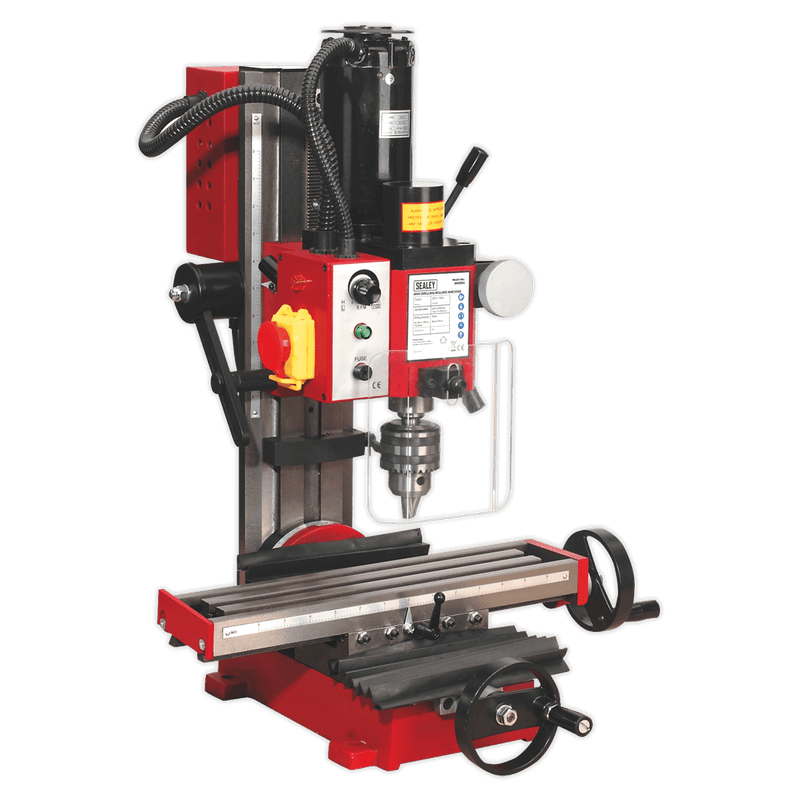

Sealey SM2502 Mini Drilling & Milling Machine

Description

Sealey SM2502 Mini Drilling & Milling Machine

Bench mounting mini drilling/milling machine with the flexibility to handle most materials. Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales. The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical. Supplied with 13mm chuck accessory kit for adjusting and setting. An optional stand is available, order Model No. SM3002ST.

SM2502 Features

• Bench mounting mini drilling/milling machine with the flexibility to handle most materials
• Features include a 350W motor, variable speed drive, working table with T-slots to enable clamping of workpieces and Metric graduated compound scales
• The machine also incorporates a tilting column which allows drilling/milling of workpiece at ±45° from vertical
• Supplied with 13mm chuck accessory kit for adjusting and setting
• An optional stand is available, order Model No
SM3002ST
• A comprehensive range of accessories also available

SM2502 Specification

• Model No SM2502
• Brand: Sealey
• Cross Axis: 100mm
• Drilling Capacity (Chuck Size): 13mm
• End Mill Capacity: 16mm
• Face Mill Capacity: 30mm
• Headstock Travel: 180mm
• Longitudinal Axis: 220mm
• Motor Power: 350W
• Nett Weight: 68kg
• Spindle Nose Taper: MT3
• Spindle Speed - High Range: 0-2500rpm
• Spindle Speed - Low Range: 0-1100rpm
• Spindle Tilt Angle: ±45°
• Supply: 230V
• T-Slot: 12mm

What is included:

• 1 x Sealey SM2502 Mini Drilling & Milling Machine
