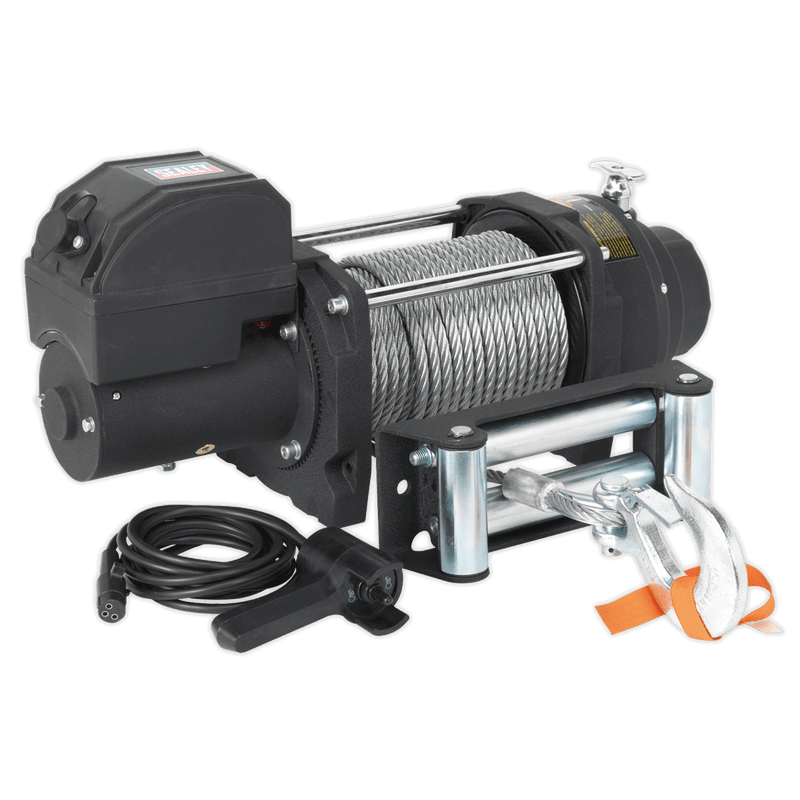

Sealey RW5675 Recovery Winch 5675kg (12500lb) Line Pull 12V Industrial

Description

Sealey RW5675 Recovery Winch 5675kg (12500lb) Line Pull 12V Industrial

An all-metal chassis for long life and low maintenance, suitable for industrial recovery and off-road use. Motor can easily be rotated 90° to meet various wiring and mounting requirements. A 6.4hp high power 4.7kW 12V DC motor with a permanent magnet gives first class pulling power. Innovative 'Double Lock' load-holding brake design provides zero drag when pulling in. Ergonomic 'lift & turn' free spool clutch. Four-stage planetary gears. High quality wire rope feeds through four-way roller fairlead for even distribution of cable onto drum. Heavy-duty all-weather housing and IP67 rated motor and gearbox.

RW5675 Features

• Suitable for industrial recovery and off-road use
• Designed and built with the toughest jobs in mind
• All-metal chassis for long life and low maintenance
• Motor can easily be rotated 90° to meet various wiring and mounting requirements
• A 6
4hp high power 47kW 12V DC motor with a permanent magnet gives first class pulling power
• Innovative 'Double Lock' load-holding brake design provides zero drag when pulling in
• Ergonomic 'lift & turn' free spool clutch
• Four-stage planetary gears
• High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum
• Heavy-duty all-weather housing and IP67 rated motor and gearbox

RW5675 Specification

• Model No RW5675
• Brand: Sealey
• Current Draw: No Load - 50A, Maximum Load - 390A
• Gear Ratio: 171:1
• Line Pull*: 5675kg(12500lb)
• Line Speed*: No Load - 15m/min, Maximum Load - 1m/min
• Motor Power: 4.7kW(6.4hp)
• Nett Weight: 41kg
• Note: *Performance quoted at first layer of cable onto drum
• Supply: 12V
• Wire Rope Diameter: 9.2mm
• Wire Rope Length: 26m

What is included:

• 1 x Sealey RW5675 Recovery Winch 5675kg (12500lb) Line Pull 12V Industrial
