Sealey PT500 Trolley Plain 0.5tonne

Description

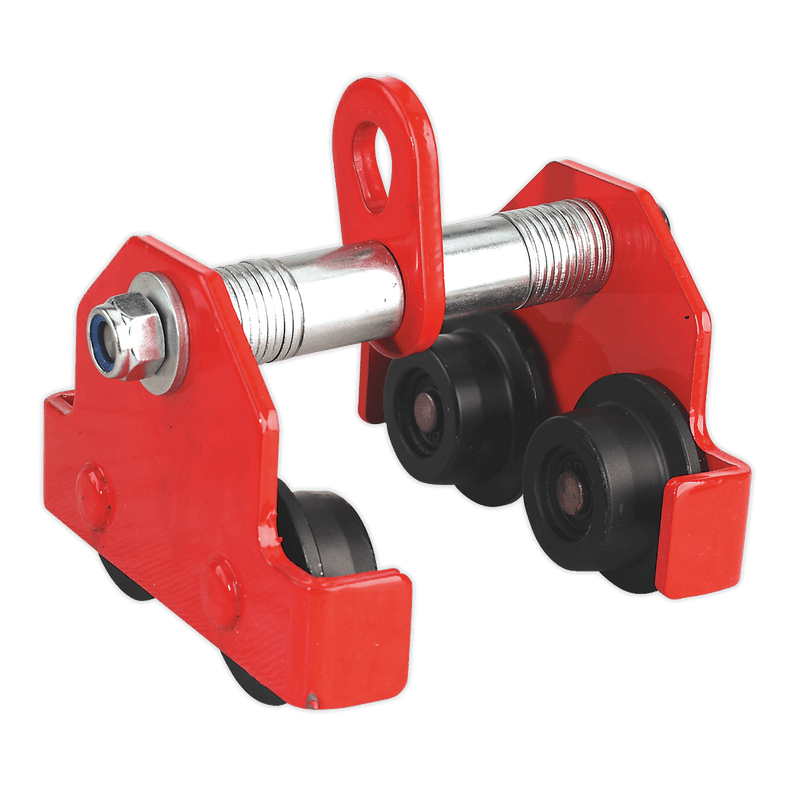

Sealey PT500 Trolley Plain 0.5tonne

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

PT500 Features

• Suitable for use with our lever hoists or chain blocks
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer

PT500 Specification

• Model No PT500
• Brand: Sealey
• Nett Weight: 7kg
• Capacity: 500kg
• Test Load: 750kg
• Track Width Adjustable Range: 64-140mm
• Minimum Curve Radius: 800mm
• A: 212mm
• B: 115mm
• C: 115mm
• D: 90mm
• E: 115mm
• Weight: 7kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
• Maximum Distance Between Spans: 3000mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
• Maximum Distance Between Spans: 8000mm
• Refer to catalogue for diagram.:

What is included:

• 1 x Sealey PT500 Trolley Plain 0.5tonne
