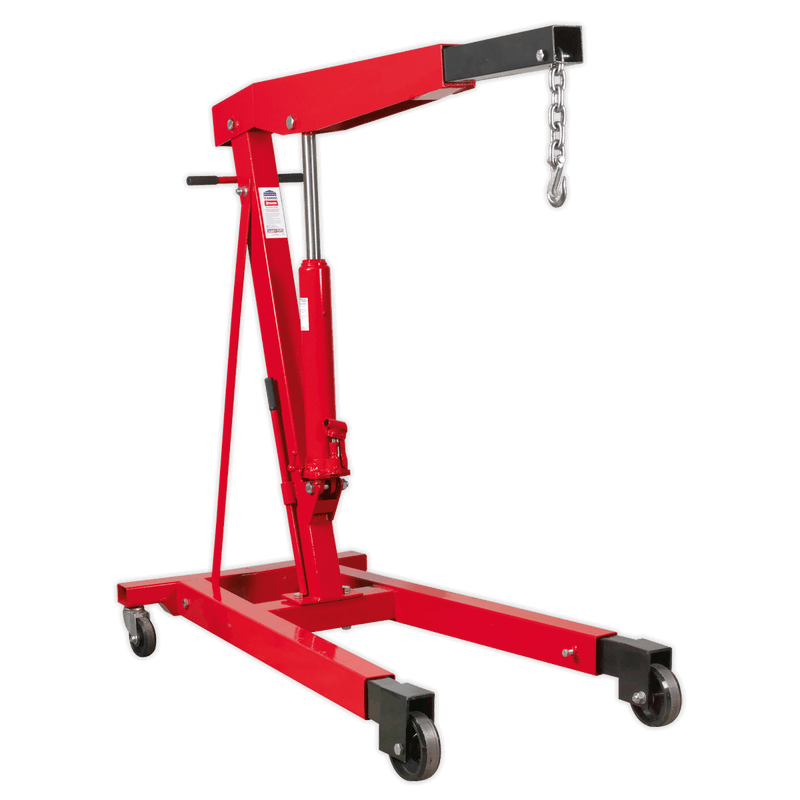

Sealey PH30 Fixed Frame Crane 3tonne

Description

Sealey PH30 Fixed Frame Crane 3tonne

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.

PH30 Features

• Lifts 3000kg at 1200mm jib extension
• Heavy-duty castors
• Perfect for heavy commercial, industrial and workshop use
• Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions
• Pump access from side for safe handling of heavy loads
• Delivered in knock-down form for reduced freight cost
• Some self assembly required

PH30 Specification

• Model No PH30
• Brand: Sealey
• Height Jib Down: 1610mm
• Height Legs Folded: n/a
• Height of Frame: 195mm
• Length Legs Extended: n/a
• Length of Jib Position 1: 1200mm
• Length of Jib Position 2: 1400mm
• Length of Jib Position 3: 1610mm
• Length of Jib Position 4: 1820mm
• Length of Jib Position 5: n/a
• Length: 1940mm*
• Lifting Capacity in Position 1: 3000kg
• Lifting Capacity in Position 2: 2000kg
• Lifting Capacity in Position 3: 1500kg
• Lifting Capacity in Position 4: 1000kg
• Lifting Capacity in Position 5: n/a
• Max. Lift Ht at Jib Position 1: 1880mm
• Max. Lift Ht at Jib Position 2: 1970mm
• Max. Lift Ht at Jib Position 3: 2010mm
• Max. Lift Ht at Jib Position 4: 2220mm
• Max. Lift Ht at Jib Position 5: n/a
• Nett Weight: 155kg
• Note: *Legs Extended
• Rear Width: 780mm
• Width Front Frame: 855mm*
• Width Inside Front Frame: 700mm*

What is included:

• 1 x Sealey PH30 Fixed Frame Crane 3tonne
