Sealey DBG5010 Dial Bore Gauge 50-160mm

Description

Sealey DBG5010 Dial Bore Gauge 50-160mm

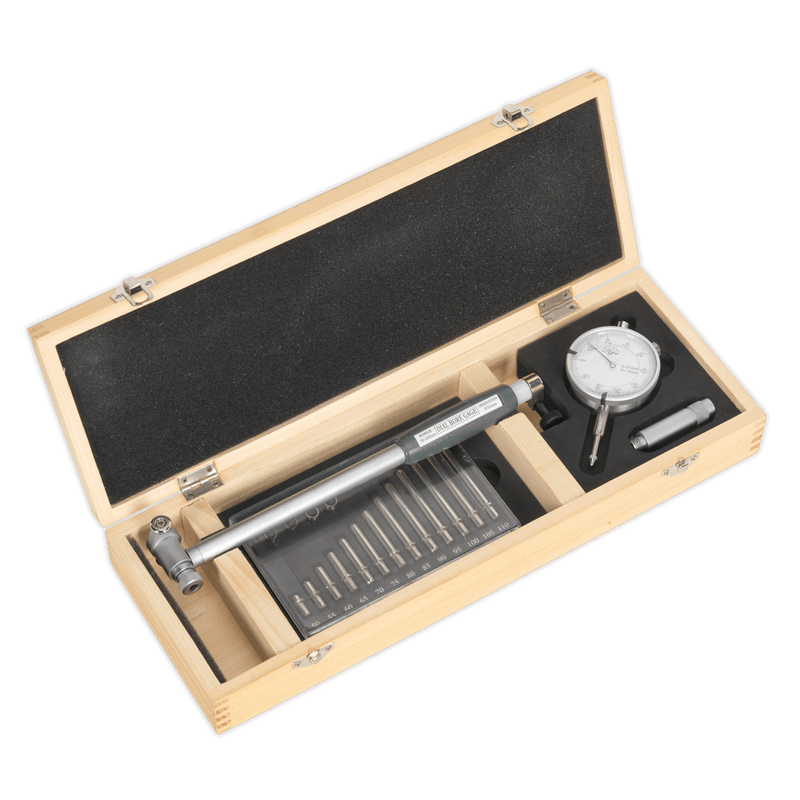

Precision mechanism with Ø55mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality. Will indicate the deviation from set size by up to 3mm with an accuracy of 0.01mm. Probe body, dial indicator, anvils and spacer rings are also included. Supplied in wooden storage case.

DBG5010 Features

• Precision mechanism with Ø55mm dial and locking rotating bezel, offering an accurate method of measuring a bore or detecting a taper or ovality
• Will indicate the deviation from set size by up to 3mm with an accuracy of 0
01mm
• Probe body, dial indicator, anvil and spacer rings are also included
• Supplied in wooden storage case

DBG5010 Specification

• Model No DBG5010
• Brand: Sealey
• Dial Diameter: 55mm
• Maximum Deviation Measurement with Stem: 1mm
• Maximum Deviation Measurement, Gauge: 3mm
• Nett Weight: 1.12kg
• Range: 50-160mm

What is included:

• 1 x Sealey DBG5010 Dial Bore Gauge 50-160mm
