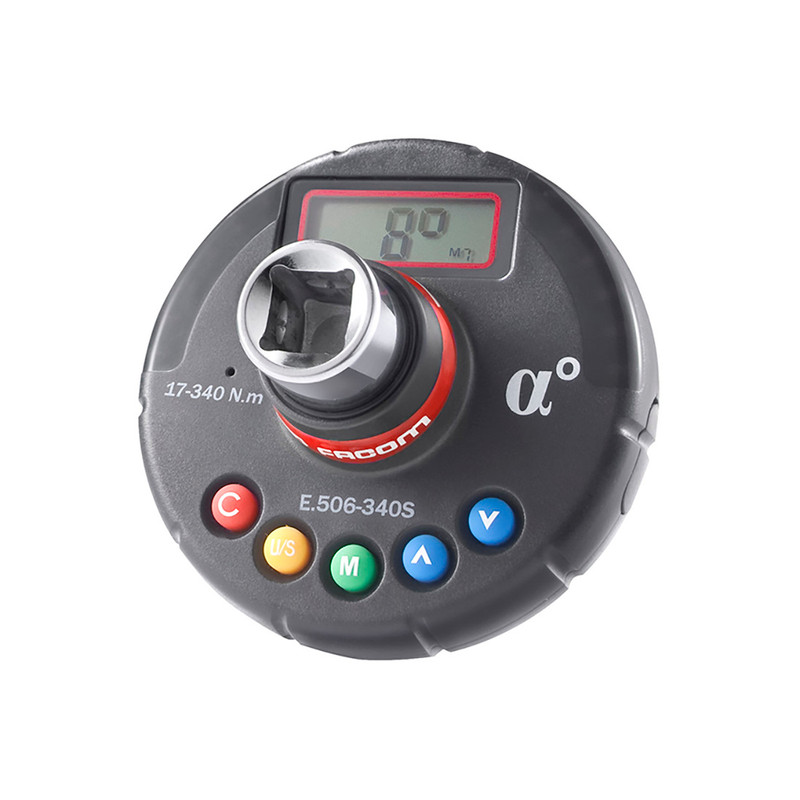

Facom FCME506340S E.506-340S Torque & Angle Adaptor

Description

FaCommand FCME506340S E.506-340S Torque & Angle Adaptor

The FaCommand E.506-340S Torque & Angle Adaptor for use in confined spaces to provide torque or angle increments. The electronic display prevents reading errors and tightening is indicated via LEDs and a buzzer. It has 9 torque and/or angle values that can be preset, a 50 result memory, a locking keypad and a magnetised tool (ratchet) fastening.

Angle tightening eliminates friction issues related with torque tightening. The movement, and hence faster tension, is defined by the screw pitch and tightening angle. Torque/angle tightening is performed in 2 steps. By pre-torquing to approach the parts and eliminate interface faults. Then tightening at a specific angle. Proper assembly tension prevents the fastener from loosening or breaking.

Supplied in a plastic case with a calibration certificate and 2 x AAA-LR03 1.5V Batteries.

Specification

Torque Accuracy: +/- 3 degree;.
Angle Accuracy: +/- 2 degree;.
Capacity: 17-340Nm.
Measuring Units: Nm, lbf.ft, lbf.in, kg.cm and deg.
Measuring Mode: Peak or Follower.
