Draper 70561 Draper Expert Hydraulic Floor Press 30 Tonne

Description

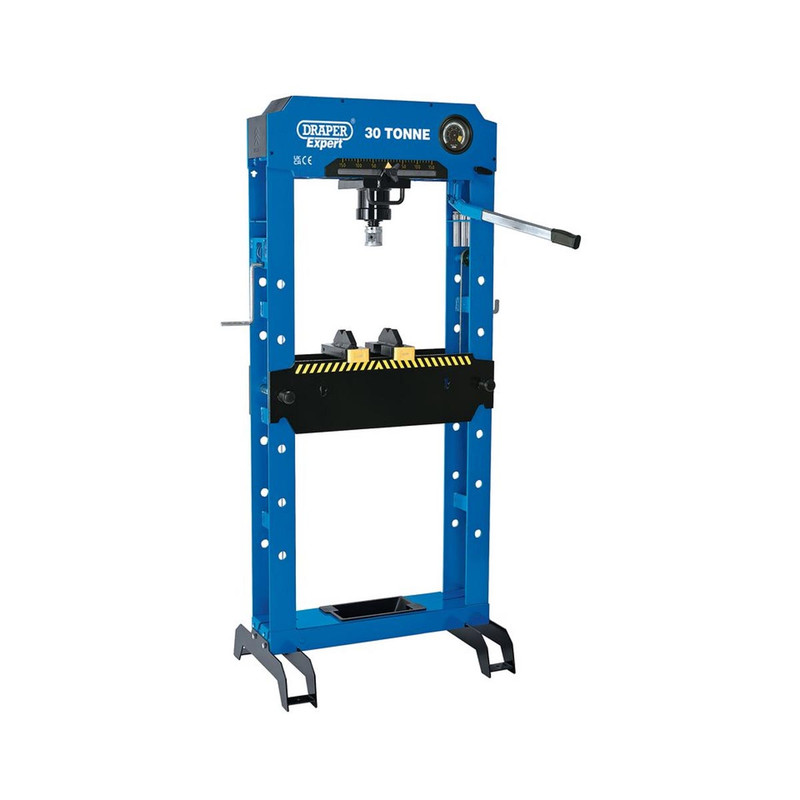

Draper 70561 Draper Expert Hydraulic Floor Press, 30 Tonne

Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.

70561 Specification:

• Capacity: 30 Tonne
• Gauge diameter: 100mm
• Ram stroke: 220mm
• Ram scale: 145mm - 0mm - 145mm
• Ram diameter: 50mm
• Table height: 25-850mm
• Press pin capacity: 2-15 Tonnes
• Overall height: 1800mm
• Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm
• Weight (net): 157kg

What is included:

• 1x Draper 70561 Draper Expert Hydraulic Floor Press, 30 Tonne
