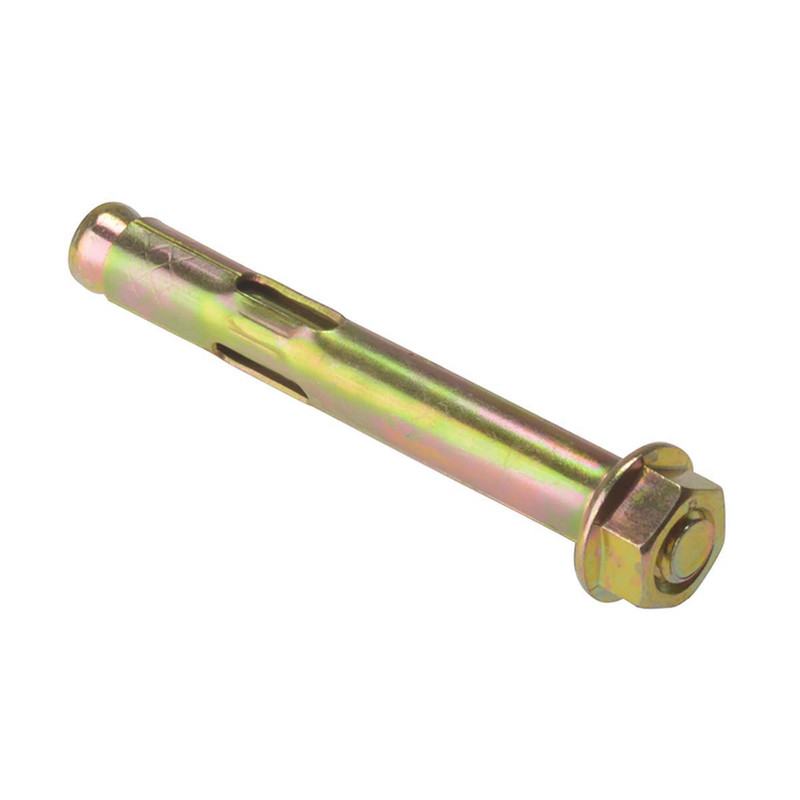

ForgeFix M10 x 77mm Sleeve Anchor Fixing Hex Nut 10SA1077 (10 Pack)

Description

ForgeFix M10 x 77mm Sleeve Anchor Fixing Hex Nut 10SA1077 (10 Pack)

These ForgeFix Sleeve Anchors are through fixing for ease of use and speed of installation. Their sleeve wedge cones are designed to give maximum expansion even in shallow anchoring depths. They have a reduced outside sleeve diameter compared to thread size for smaller hole sizes offering reduced stress in base materials.The anchors are Zinc Yellow Passivated for increased corrosion resistace. They offer easier fixture removal or repositioning due to the bolt remaining in the shield. Also known as Projection Bolt sleeve anchors.

10SA1077 Features:

• Expansion anchor masonry fixing.
• Finish: Zinc Yellow Passivated.
• Also known as 'projection bolt' sleeve anchor.
• Through fixing for ease and speed of installation.
• Sleeve wedge cones designed to give maximum expansion.
• Reduced outside sleeve diameter compared to thread size offersreduced stress in base materials.
• Offers easier fixture removal or re-positioning due to bolt part remaining in the shield.
• Widely used for fixing balustrades, handrails, racking, roller shutters, window grills and much more.
• Suitable for most masonry substrates including concrete and brickwork.
• Socket size guide: M6: 10mm, M8: 15mm, M10: 17mm, M12: 19mm, M16: 24mm.

10SA1077 Specification:

• Size: M10 x 77mm
• Finish: Zinc Yellow Passivated
• Pack Depth (mm): 180
• Pack Height (mm): 20
• Pack Width (mm): 125
• Drill Size: 10mm
• Min Hole Depth: 45mm
• Max Fixing: 39mm
• Socket Size: 17mm
• Metric Size: M10 x 77mm
• Diameter: M10
• Brand: FandF
• Length: 77mm
• Pack Qty: 10
• Head Type: Hex

What is included:

• 1x ForgeFix M10 x 77mm Sleeve Anchor Fixing Hex Nut 10SA1077 (10 Pack)
