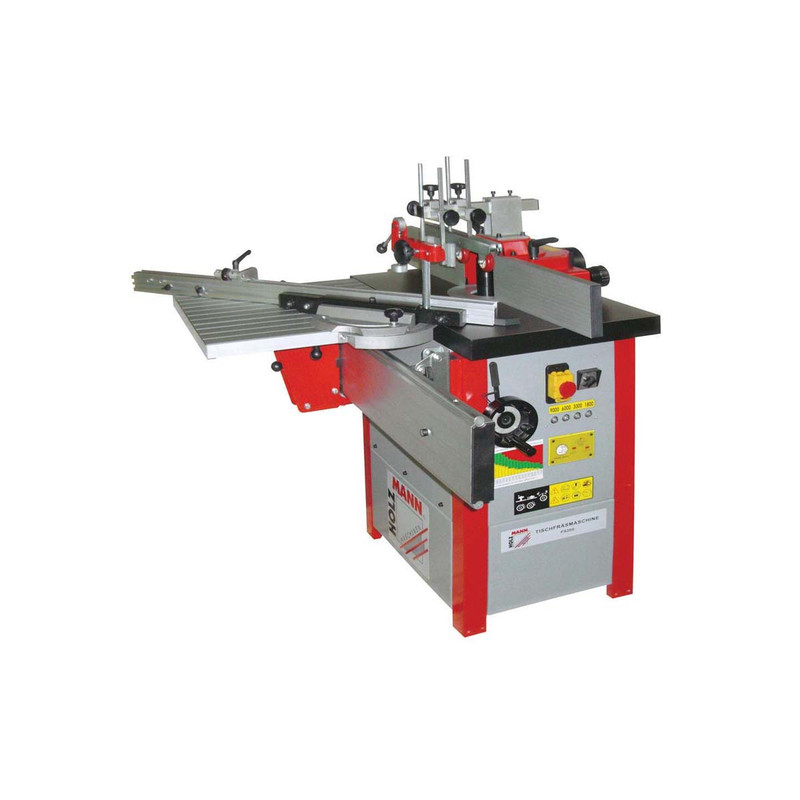

Holzmann FS200 4 Speed Spindle Moulder 230V

Description

Holzmann FS200 4 Speed Spindle Moulder 230V

Holzmann FS200 FS200 4 Speed Spindle Moulder with 2800 W motor, sturdy steel construction and solid cast iron table. Features an electronic speed indicator, sanding roller, and roller pressure guard. An optional sliding table carriage can be retro-fitted. Suitable for both trade and light professional use.

FS200 Features:

• Solid and torsion-free gray cast iron table
• High-quality milling fence with hold-down system and fine adjustment
• 4 milling Speeds as standard: 1800/3000/6000/9000 min
• Maximum cutter diameter of 190mm
• Speed can be read via LED display
• Large hand wheels for spindle adjustment
• Sliding table optionally available and can be retrofitted
• Sanding attachment included
• Powerful 2.8 kW motor

FS200 Specifications:

• Motor power s1 in W@ 2800
• Motor power s6 in W: 3750
• Voltage: 230V
• Suction port in mm: 100
• Table height in mm: 900
• Table size in mm: 690×480
• Mitre fence in mm: 360×120
• Max. tool diameter above table: 190
• Table opening in mm: 200
• Max. tool diameter below table in mm: 190
• Max. clamping height in mm: 105
• Spindle stroke in mm: 100
• Milling spindle speed in min-1: 1800/3000/6000/9000
• Milling spindle diameter in mm: 30
• Gross weight in kg: 155
• Net weight in kg: 150
• Packaging length in mm: 730
• Packaging width in mm: 520
• Packaging height in mm: 680
• Spindle diameter in mm: 30

What is Included:

• 1x Holzmann FS200 4 Speed Spindle Moulder 230V
• 1x Sanding tool
• 1x Spindle shaper hood
• 1x Mitre fence
• 1x Down holder system
