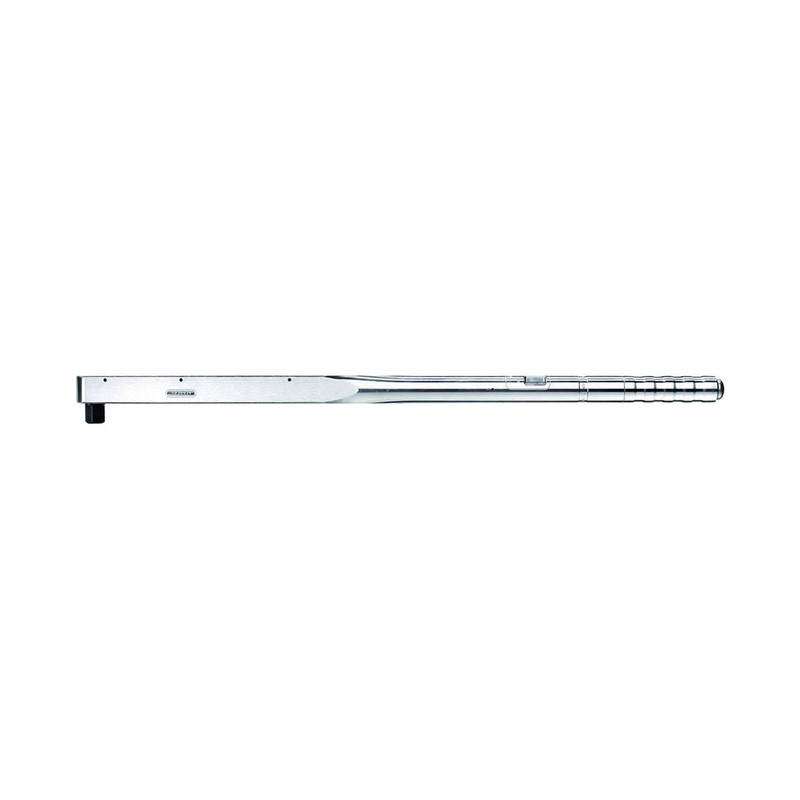

Gedore 1427156 8574-10 Torque wrench DREMOMETER DS 3/4" 110-550 Nm

Description

Gedore 1427156 8574-10 Torque wrench DREMOMETER DS 3/4" 110-550 Nm

• Controlled screw tightening in the most common range of 110 - 550 N·m / 80 - 400 lbf·ft
• For use in almost all industrial manufacturing areas
• Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
• 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Dual scale with a scale graduation of 10 N·m and 10 lbf·ft
• Technical advantage/Function:
• Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
• Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a lever mechanism
• Forged lever chain from our group own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

1427156 Specification:

• Net weight [g]: 2900 g
• Drive connector square male: 3/4"
• Contents (Qty of pieces): 1 tlg.
• Total length [mm]: 812 mm
• Torque (min.) [N·m]: 110 N·m
• Torque (max.) [N·m]: 550 N·m
• Torque (min.) [lbf·ft]: 80 lbf·ft
• Torque (max.) [lbf·ft]: 400 lbf·ft
• Total width [mm]: 45 mm
• Total height [mm]: 35 mm

What is included:

• 1 x Gedore 1427156 8574-10 Torque wrench DREMOMETER DS 3/4" 110-550 Nm
