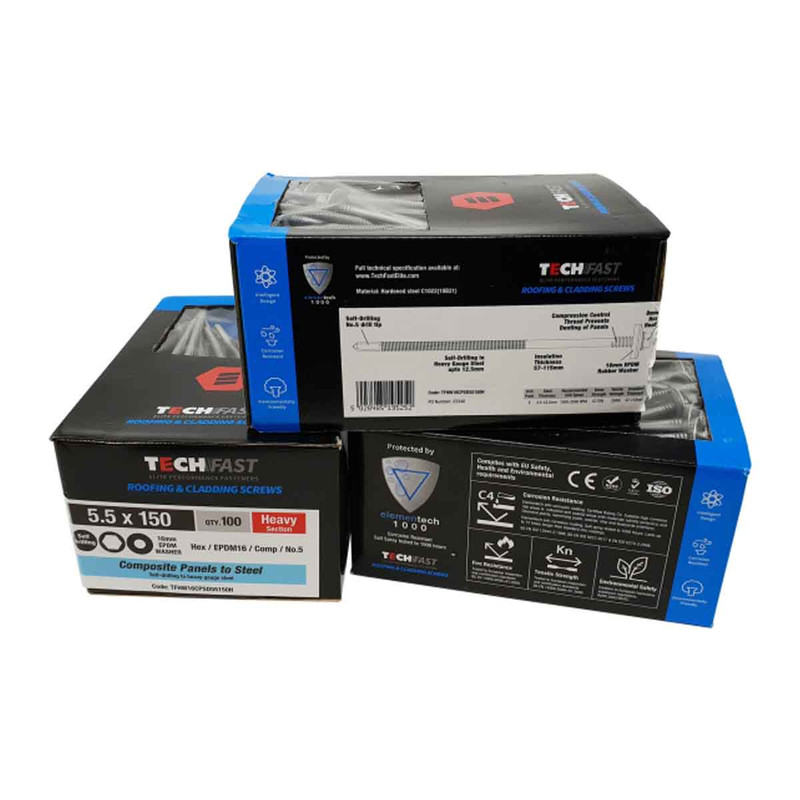

TechFast 5.5 x 125mm Composite Panels to Steel Hex Screw No.5 Tip TFHW16CPSD55125H (100 Pack)

Description

TechFast 5.5 x 125mm Composite Panels to Steel Hex Screw No.5 Tip TFHW16CPSD55125H (100 Pack)

The TechFast 5.5 x 125mm Composite Panels to Steel Hex Screw, labeled as TFHW16CPSD55125H, is a specialized fastener designed for attaching composite panels to steel structures. This pack contains 100 screws. With a diameter of 5.5mm and a length of 125mm, it provides a robust connection. The screw features a No.5 hexagonal tip for easy installation using a compatible driver. It is designed with a self-drilling point, eliminating the need for pre-drilling and making the installation process more efficient. These screws are particularly well-suited for applications where composite panels need to be securely fastened to steel components.

TFHW16CPSD55125H Features:

• TechFast Composite Panels to Steel.
• Used for joining composite panels to steel frame buildings.
• Specially designed compression control thread to prevent damage and denting of panels.
• 8mm Hex Head.
• No.5 drill tip for self-drilling in heavy gauge steel up to 12.5mm.
• Complete with 16mm EPDM rubber washer.
• Fire and corrosion resistant. protected by Elementech corrosion resistant coating, salt spray tested to 1000 hours.
• Complies with EU Safety, Health and Environmental requirements.

TFHW16CPSD55125H Specification:

• Size: 5.5 x 125mm
• Finish: Elementech
• Pack Depth (mm): 190
• Pack Height (mm): 95
• Pack Width (mm): 132
• Metric Size: 5.5 x 125mm
• Max Steel Thickness: 3.5 - 12.5mm
• Diameter: 5.5mm
• Drill Point: 5
• Brand: TechFast
• Pack Type: Box
• Length: 125mm
• Pack Qty: 100
• Head Type: Hex
• Washer Size: 16mm
• Steel Section: Heavy Duty

What is included:

• 1x TechFast 5.5 x 125mm Composite Panels to Steel Hex Screw No.5 Tip TFHW16CPSD55125H (100 Pack)
