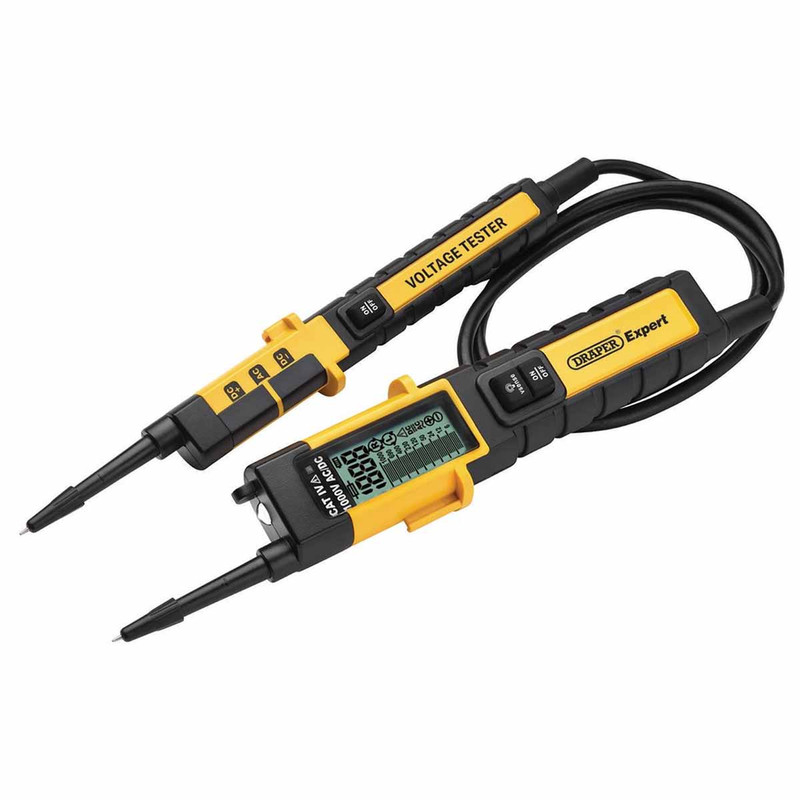

Draper 21250 Expert AC/DC High Voltage CAT IV Tester, 1000V

Description

Draper 21250 Expert AC/DC High Voltage CAT IV Tester, 1000V

This high-voltage circuit tester is designed to check automotive circuitry, domestic wiring, and electronic equipment. It is specifically designed for testing 6V-1,000V DC systems and 24V-1,000V AC systems. The tester features an easy-to-read LCD digital display, including a bar chart displaying voltage ranges of 6, 12, 24, 50, 120, 230, 400, 690, and 1,000V. Additionally, it includes a self-test function, a light for illuminating the test point, and an insulated and sharpened probe for accessing circuits and switches with adjustable covers. This tester is suitable for use with most hybrid and electric cars, motorcycles, commercial vehicles, trailers, boats, and agricultural vehicles. Requires 2 x AAA batteries (available separately).

21250 Features:

• For testing 6V-1,000V DC systems and 24V-1,000V AC systems.
• Easy-to-read LCD digital display.
• Self-test function.
• Light for test point illumination.
• Insulated and sharpened probe for accessing circuits and switches with adjustable covers.
• Suitable for most hybrid and electric cars, motorcycles, commercial vehicles, trailers, boats and agricultural vehicles.
• Requires 2 x AAA batteries (available separately).

21250 Specification:

• CAT category: CAT IV 1,000V
• AC voltage range: 24-1,000V
• DC voltage range: 6-1,000V
• Voltage increments: 1V
• Accuracy: ±3% and ±3V
• Ingress protection: IP65
• Weight: 0.285kg

What is included

• 1 x Draper Expert AC/DC High Voltage CAT IV Tester, 1000V
