Kane 258 Combustion Flue Gas Analyser Kit

Description

Kane 258 Combustion Flue Gas Analyser Kit

The Kane 258 Combustion Flue Gas Analyser is a versatile tool designed for installing and servicing domestic oil and gas appliances. It offers essential features like measuring O2 and CO levels, calculating excess air, CO/CO2 ratio, and combustion efficiency, with the added capability to handle up to 20% H2 blend. Its innovative purge pump protection ensures reliability, while wireless connectivity allows for easy data transfer. With USB charging and a 10-year warranty, it's a user-friendly instrument compatible with various fuels, making it an ideal choice for combustion performance and efficiency checks. Comes supplied bundled with a probe, Kane IRP-3 Infrared Printer, USB charger, quick reference guide, analyser calibration certificate, and a convenient carry bag.

KANE258 Application:

• Install & service domestic oil & gas appliances
• Combustion performance checks
• Combustion efficiency checks

KANE258 Features:

• Entry level FGA instrument
• Measures O2 (0-21%)
• Measures C0 (0-2,000ppm)
• Calculates excess air
• Calculates CO & CO2 ratio
• Calculates combustion efficiency & differential temperature
• H2 ready - up to 20% blend
• Innovative purge pump protection from over-range
• Wireless connectivity included
• Data hold, log & print with option for additional IR printer
• Easy to use rotary dial
• Compatible with various of fuels
• USB charging capabilities
• 10 year warranty provided by Kane

KANE258 Specification:

• Hose Length: 3m
• Power Supply: 4x AA Batteries
• Handset Dimensions: 218 x 105 x 47 mm
• Probe Dimensions: 300mm long (inc. handle) x 6mm dia. with 265mm long stainless steel shaft
• Weight: 1kg
• Fuel Types: Natural Gas; Butane; LPG; Light oil; Wood pellets; Propane

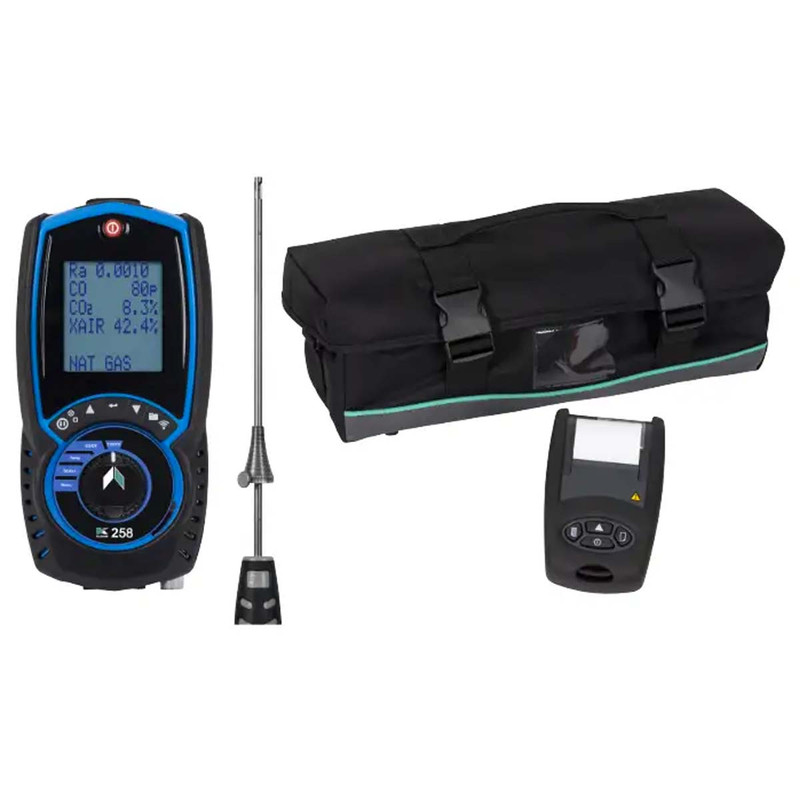

What is included:

• 1x Kane 258 Combustion Flue Gas Analyser
• 1x Probe
• 1x Kane IRP-3 Infrared Printer
• 1x USB charger
• 1x Quick reference guide
• 1x Analyser calibration certificate
• 1x Carry bag
